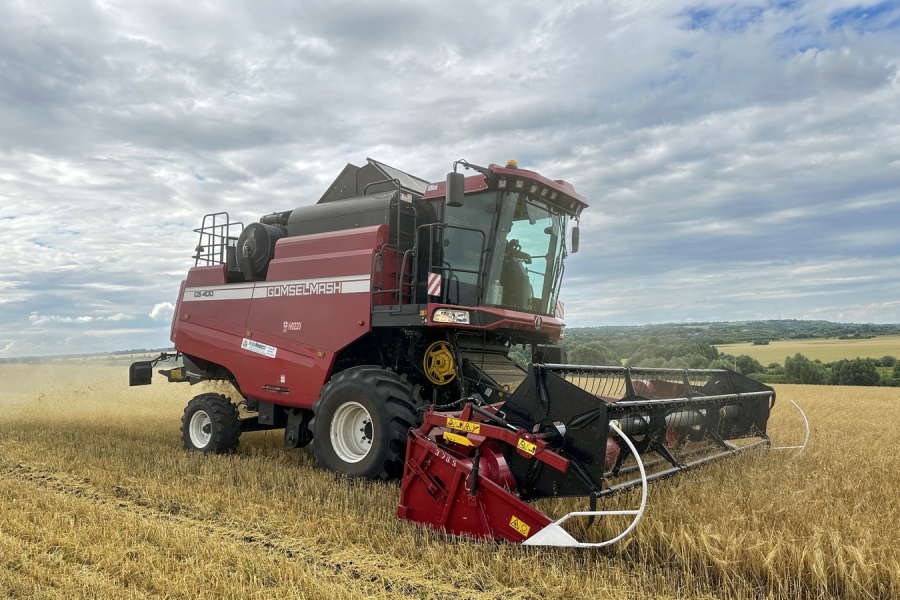

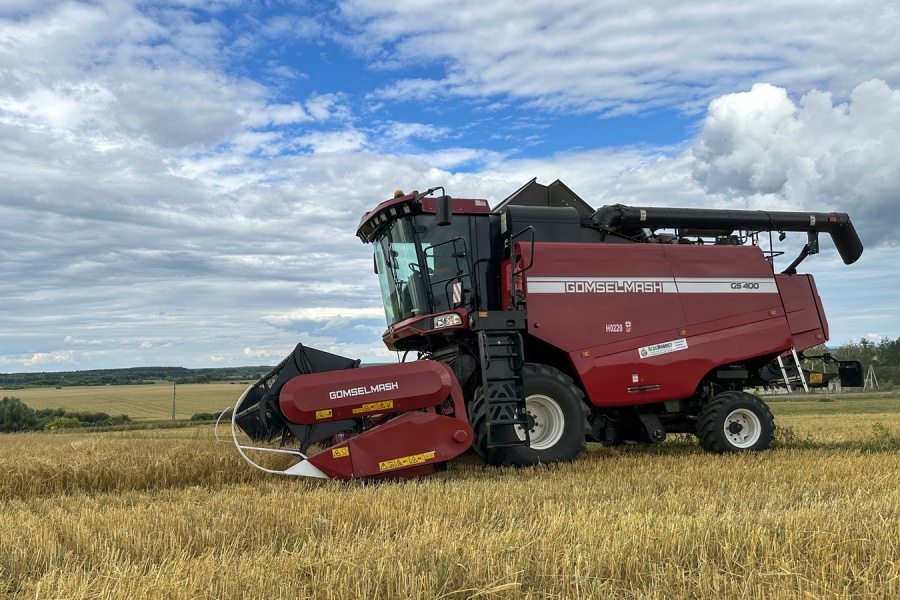

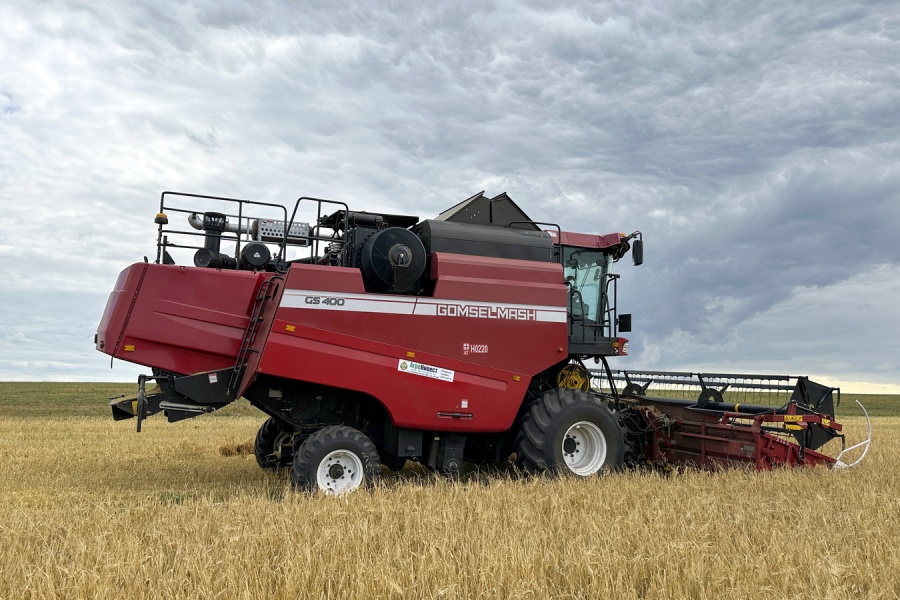

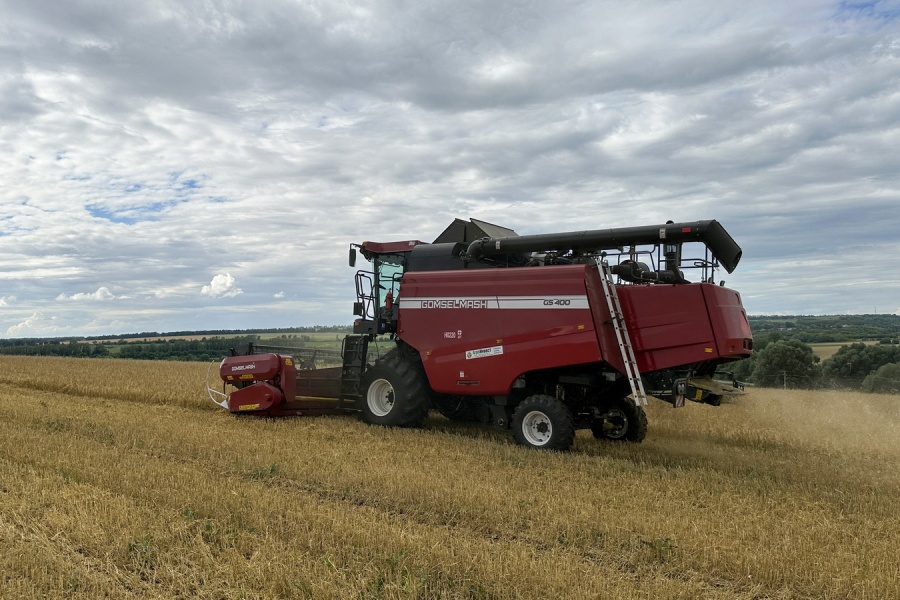

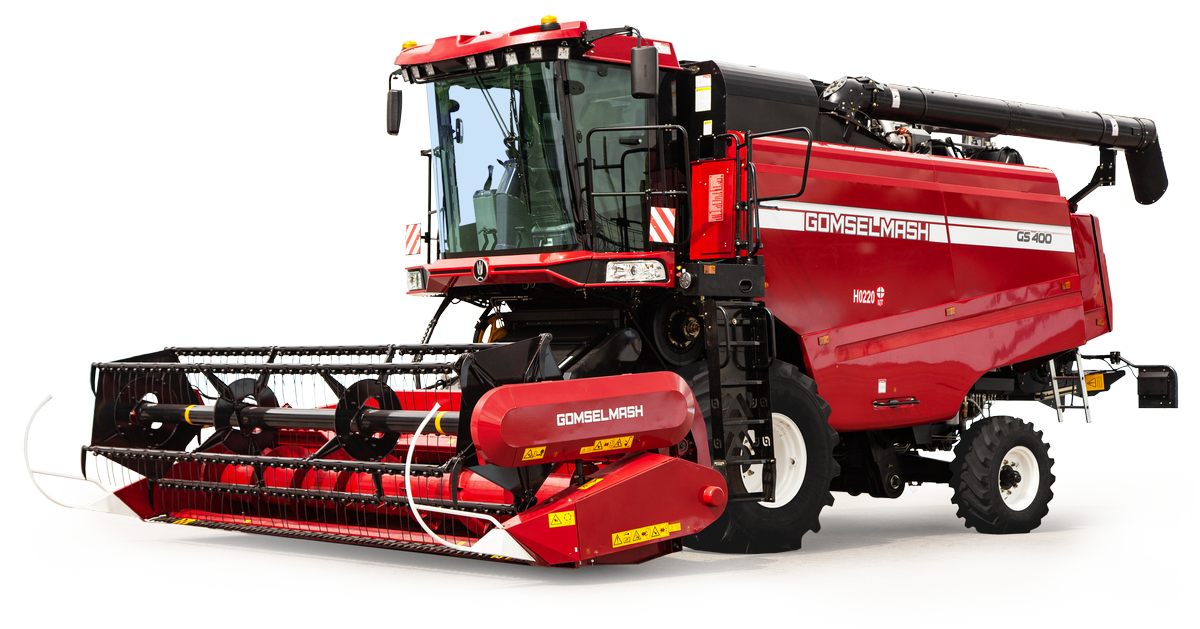

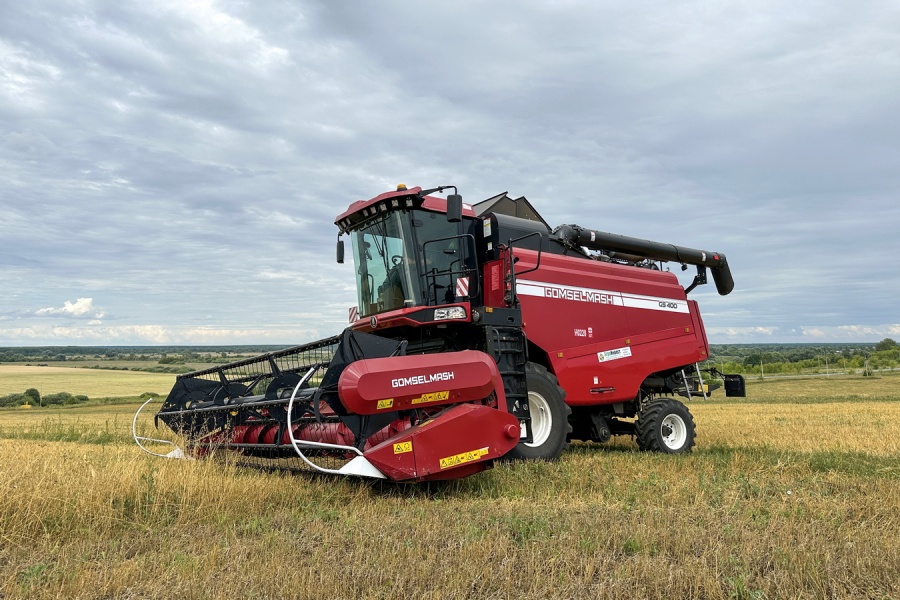

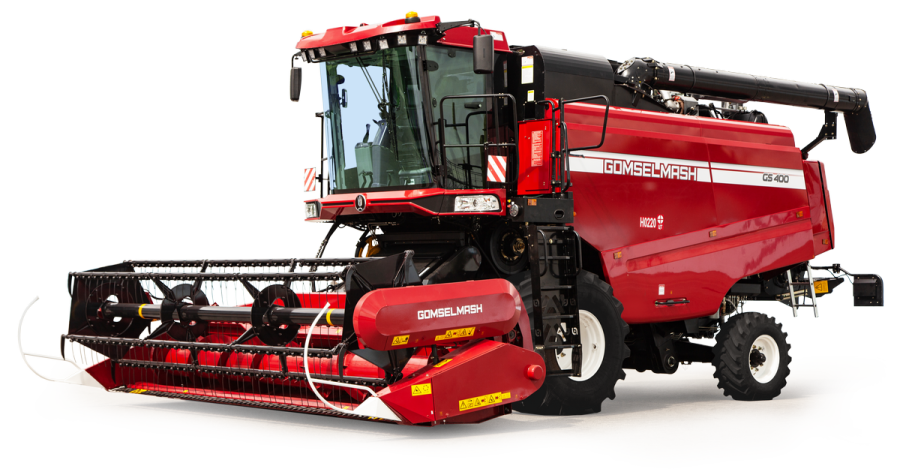

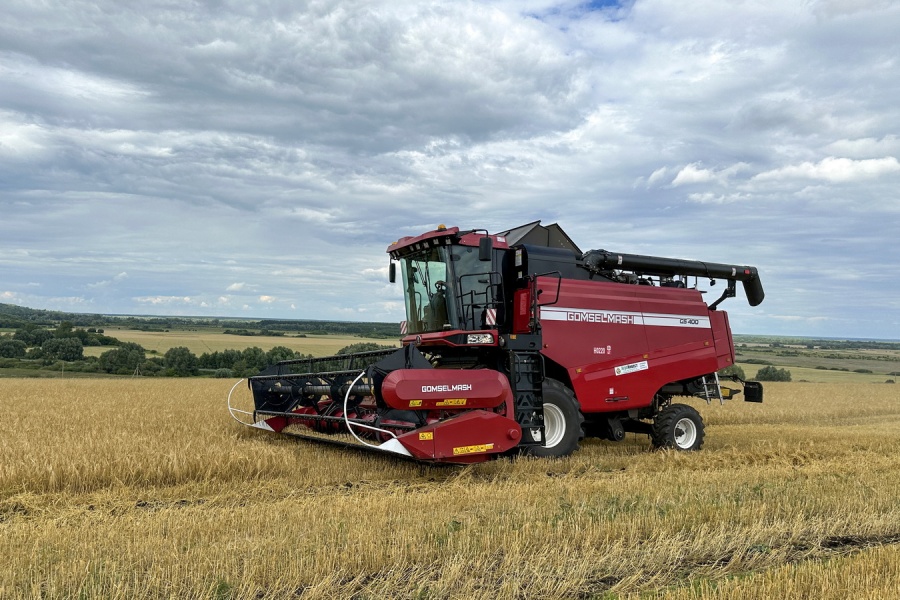

GOMSELMASH GS400 combine harvester is a combination of compactness and productivity, ideal for small and medium-sized agricultural organizations.
The simplicity of the GS400 combine, the benefits of classic threshing and separation system, the optimal cost of ownership of the combine make this model the most practical choice for confident work in fields with low and medium yields.
UNI CAB
The new generation UNI CAB, which is equipped with the GS400 combine, meets your expectations of comfort and helps you stay efficient throughout the long shift.
Working at night, even with wide-angle adapters, will not be a problem for you, because the powerful LED VISION electric lighting system installed in UNI CAB is responsible for excellent visibility. In addition, the more convenient location of the side mirrors increases your observability and enhances driving safety.
Ergonomic joystick, audio system, beverage cooler, climate control, USB port for connecting external devices, 12V socket, organizers for storing documents and small items, steering column and air suspension seat with adjustments allow you to customize your favorite seat individually and comfortably.
The ergonomic U-PAD combine control panel with logically grouped controls helps you to carry out work operations in an intuitive way without unnecessary difficulties.
The information system of HARVEST OFFICE on-board computer with a color touch screen helps to manage and provide real-time monitoring of the state of the main combine functional units, control the working parts, engine, transmission, the progress of work and service operations, and also informs about the presence of warning and emergency situations.
HARVEST OFFICE in combination with a monoblock combine control panel and a multifunctional combine control joystick MULTI GRIP, integrated into the armrest allows you to easily control the harvesting process under any conditions.
Also, to facilitate and increase the efficiency of your work, the combine has a system that allows you to adjust the working parts of the combine from the cab (threshing drum speed, concave clearance, fan speed) when changing crops.
Original constructional decisions and arrangement of the combine working systems provide maximum results by reasonable power consumption, which guarantees the optimal cost of which guarantees the optimal cost of harvested grain.
Reliability in simplicity
The GS400 combine is equipped with a feeder housing using three high quality structural chains. Thanks to the simple design of the conveyor, the plant mass passes stable along the feeder housing, while minimizing the bending load moment on the conveyor slats. Applied technical solutions prolong the life of key components of the feeder housing.
The GS400 feeder housing paired with a single-drum threshing and separating system creates minimal airflows, which minimizes dust formation in the working area of the header. This technology enable manage without additional dust removal devices, which increases reliability without additional financial costs.
Harvesting difficult crops won't be a problem, because the hydraulic reverse function allows you to harvest in a short time, saving time on cleaning the feeder housing and adapter.
The hydraulic multi-coupling for adapters reduces the time of their aggregation and makes this process less laborious.
Time-tested classic threshing and separation system
The GS400 combine is a bright representative of models with the classic DRUM-FLOW threshing and separation system with one threshing drum, beater and straw walker.
Such a scheme, apart from enviable technological reliability, provides versatility of application and simplicity of maintenance. The large size of the drum (diameter 800 mm) and deck allows you to significantly soften the threshing mode without reducing the degree of threshing. The concave clearance required for optimal threshing is controlled by an electric mechanism from the cab.
The DRUM-FLOW system fully demonstrates its performance when working on difficult crops, such as high-straw and wet grain.
If there was a clogging of the concave you can quickly eliminate it without stopping the threshing drum using the DRUM RESET system, which is turns on by the pedal on the right under the seat. This operation will take you only a few seconds.
Optimum height difference, intensive counter movement of the straw walker keys guarantee you the most complete separation of the residual grain.
Three-stage cleaning system with a sieve area of about 3.86 m2 is the optimal solution for a medium-class combine and maintaining its stable performance.
6 500 litres grain tank

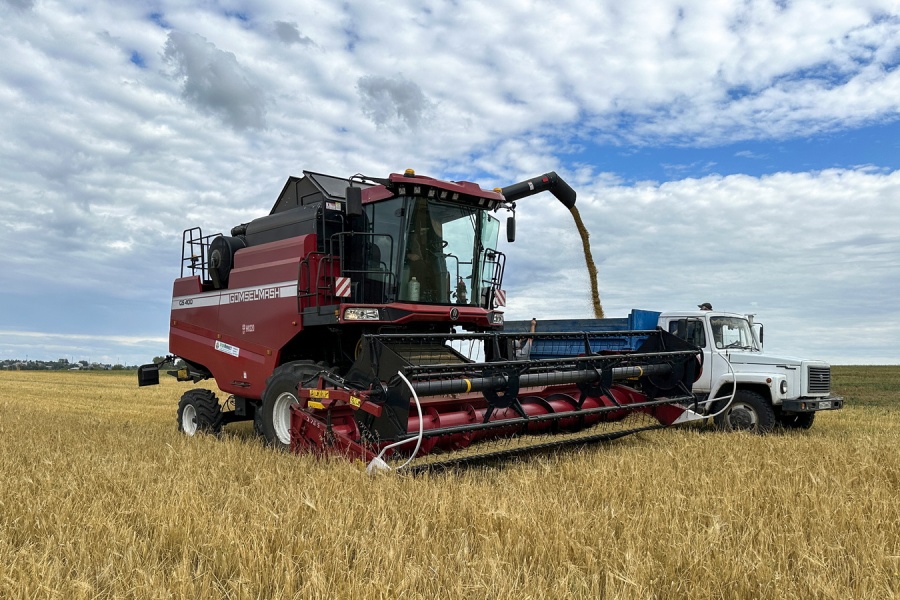

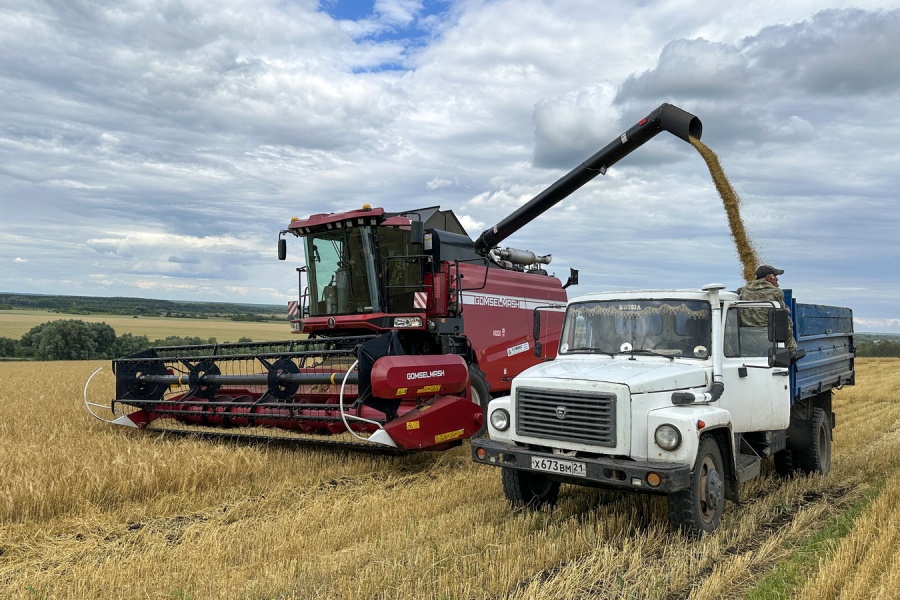

The new grain tank with a volume of 6 500 liters is optimally suited for small and medium-sized farms with a yield of 15-30 centner per hectare. A full grain tank is emptied in one and a half minutes thanks to an unloading speed of 70 l/s.
Harvesting in a short time is not a problem! With the help of the STICK CONTROL system, you can harvest high-moisture grain, thereby reducing the downtime of your machines.
The height and length of the unloading auger make it easy to unload grain into vehicles, even on combines with 7 meters headers.
Variety of work with straw
The GS400 combine is ready to meet the needs of many farms not only in the variety of harvesting, but also in the processing of the non-grain part of the crop.
The time-tested straw chopper OPTI-CUT 64 with an optimal number of knives of 64 units ensures consistently high quality of chopping and scattering of the non-grain part of the crop without the use of additional functions.
If necessary, in addition to laying in a swath, the long straw can be collected in shocks weighing up to 300 kg. This will make it possible to make a GS400 combine harvester equipped with a straw collector with an impressive capacity of 12 m3.
Systems for fast and productive work
To reduce the speed of the threshing drum when harvesting crops that are easily damaged, such as corn, sunflower, a reduction gear is installed on the GS400 combine harvester.
The main advantages of the automatic central lubrication system are an increase in the reliability of the main components, a reduction in the maintenance time.
To increase convenience during maintenance and repair, the combine has fully opening hoods with the ability to install an aluminum ladder, and a 100-litre air receiver.
Versatility when working on different crops
Whatever crop you grow, you can harvest it with the GS400 combine using our adapters.
You can get more detailed information about prices, terms of purchase and deliveries of combines from a dealer in your region.
