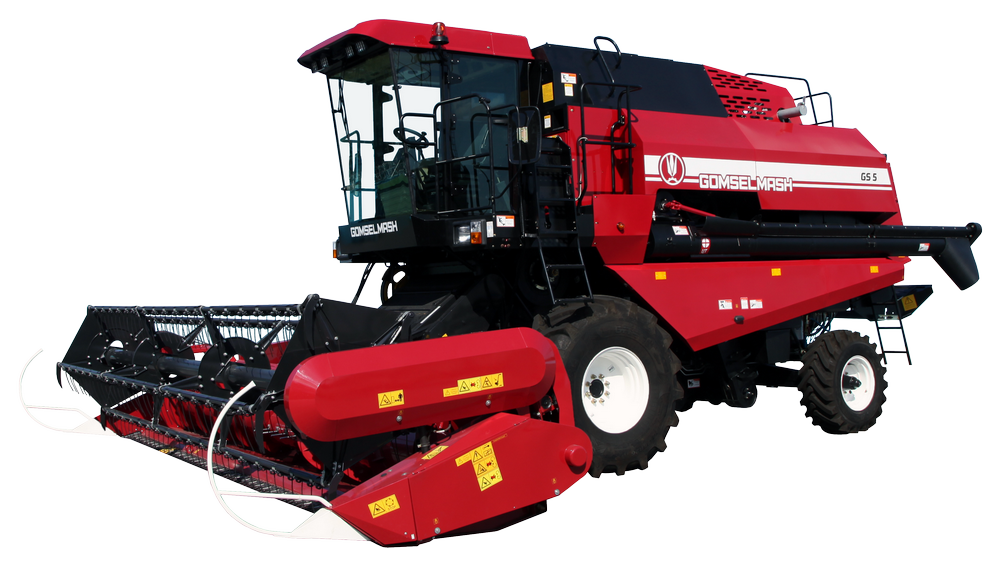

GRAIN HARVESTING COMBINE GS5

2YEARS WARRANTY
GRAIN HARVESTING COMBINE GS5
5kg/sec
Throughput
210h.p.
Engine power
Threshing system (single drum)
Separation system (4 keys straw shaker)

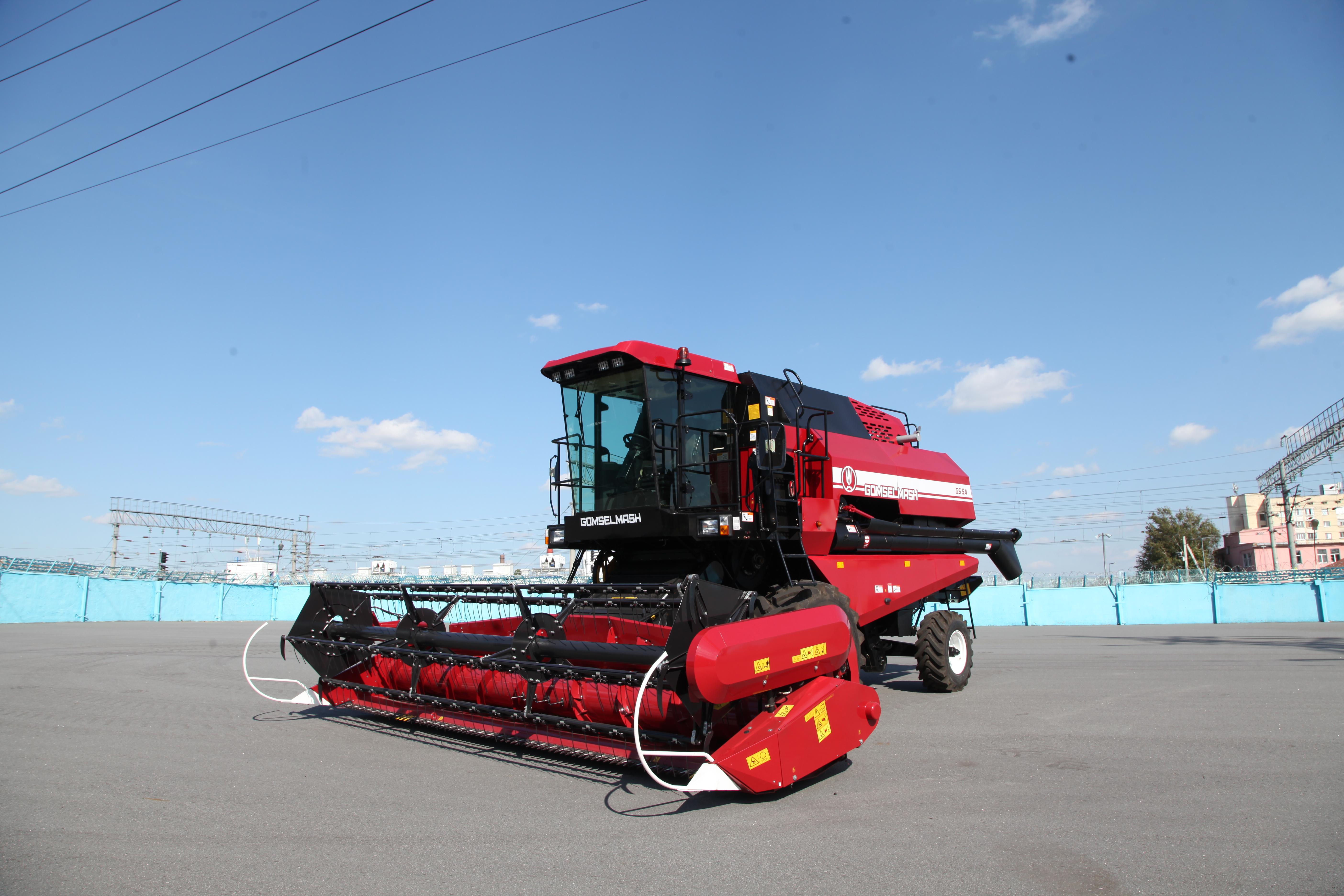

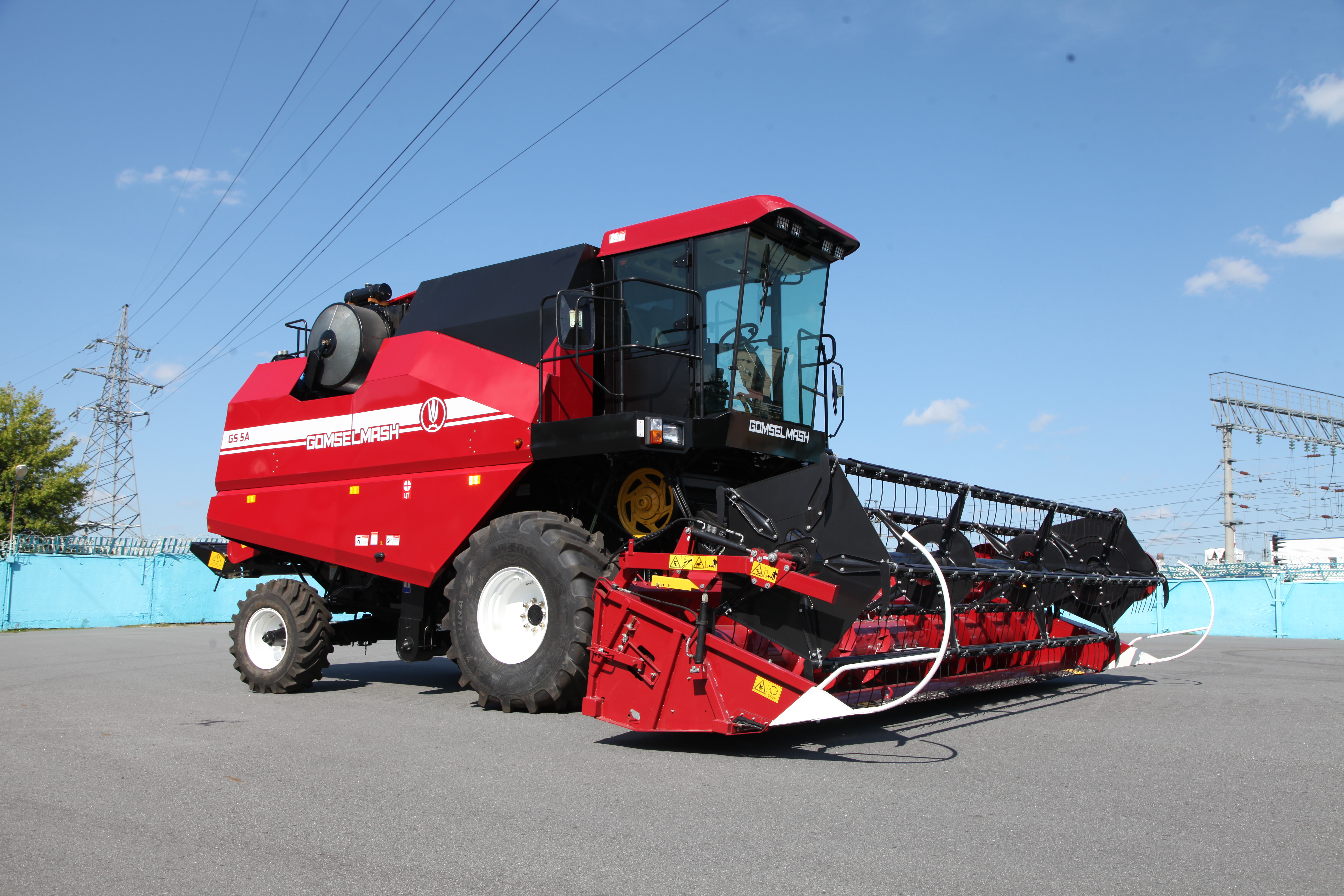

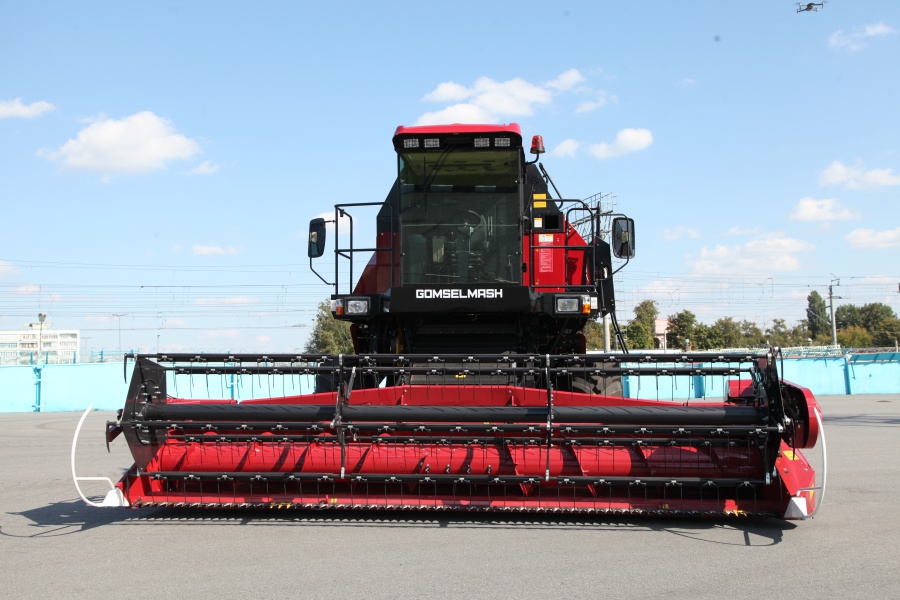

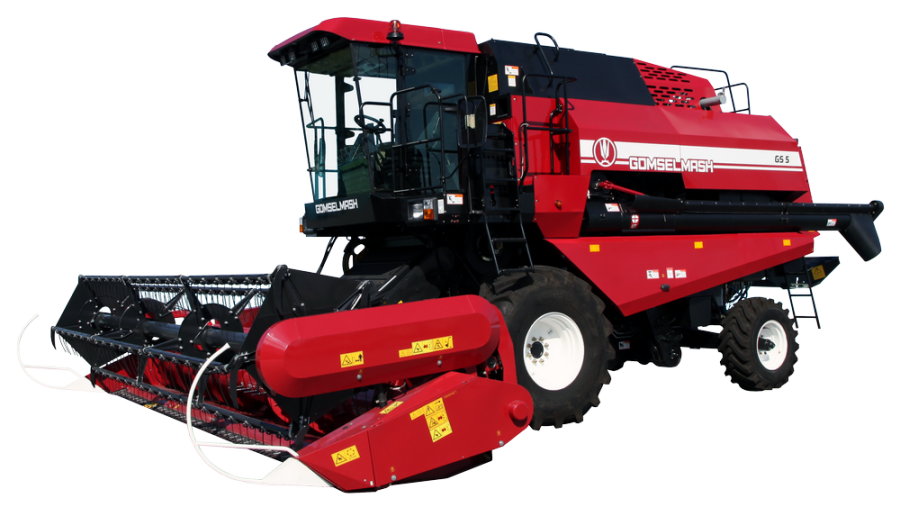

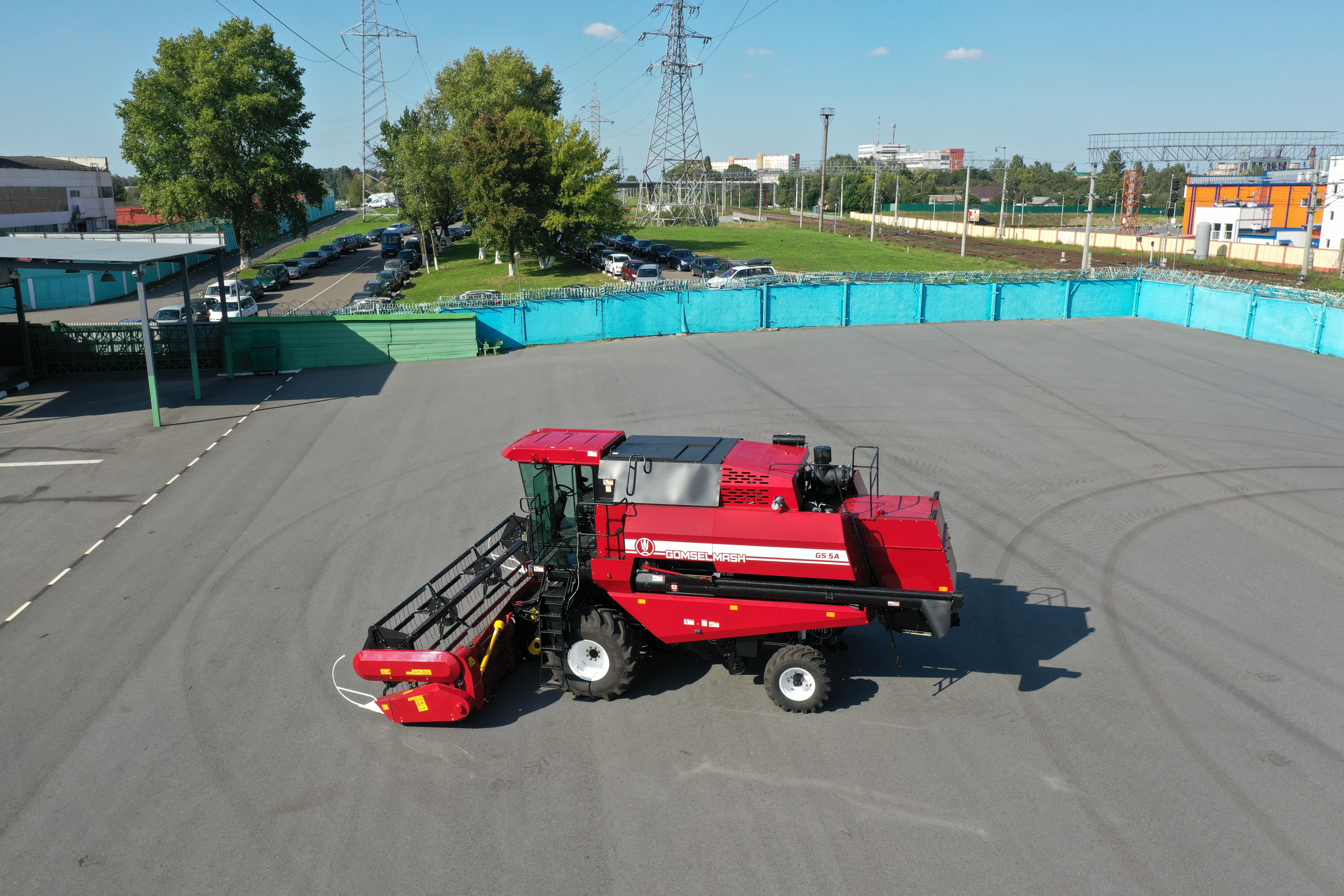

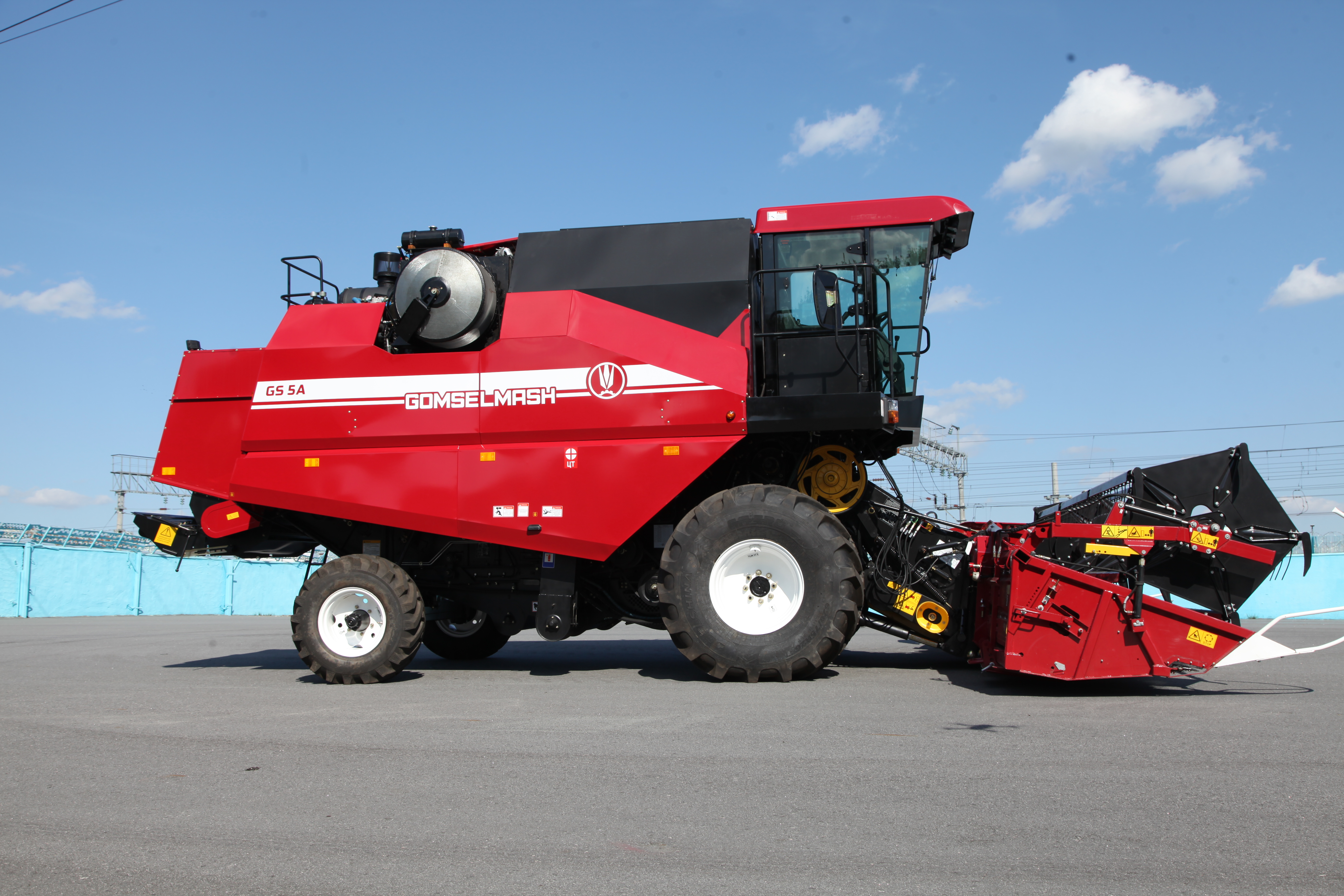

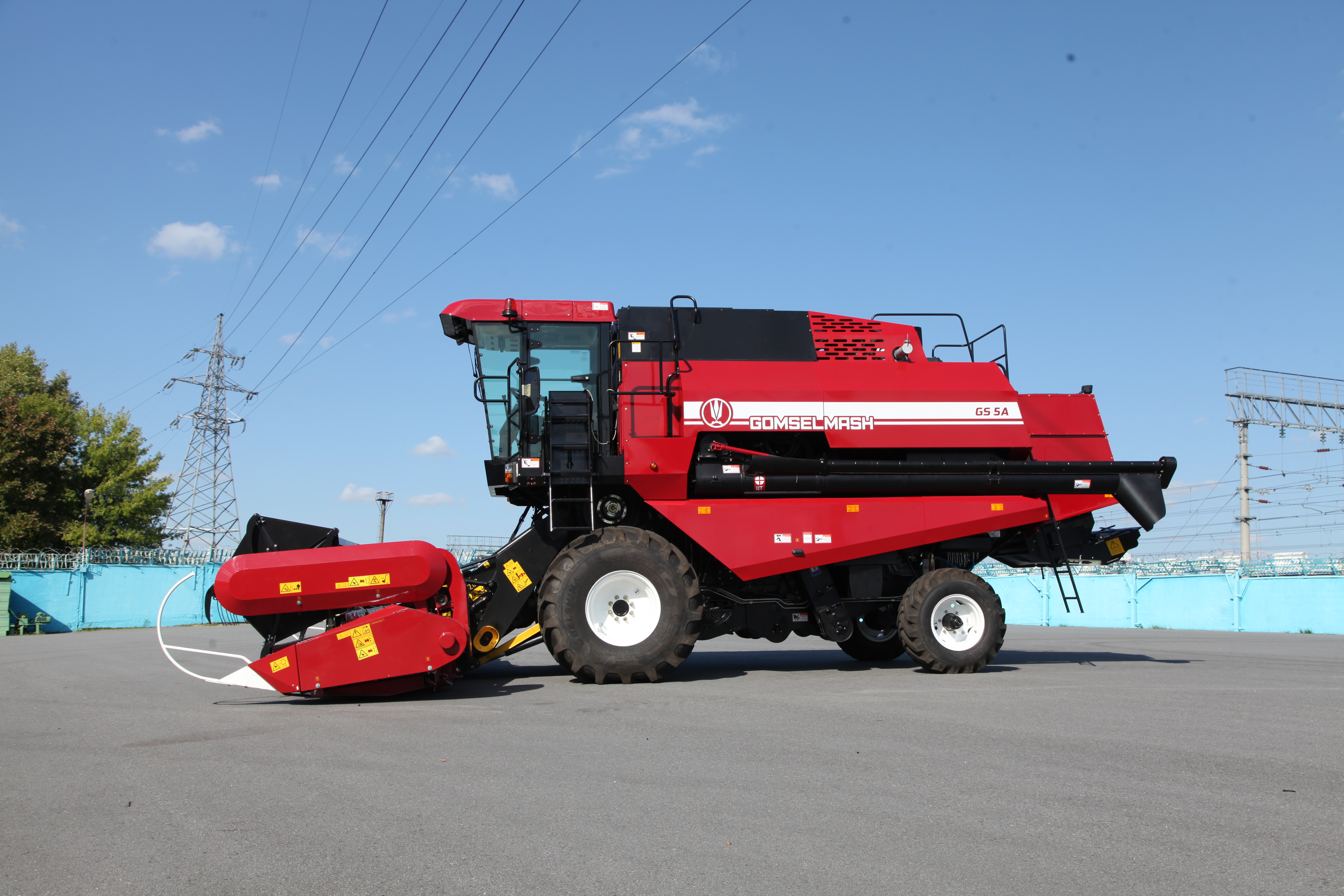

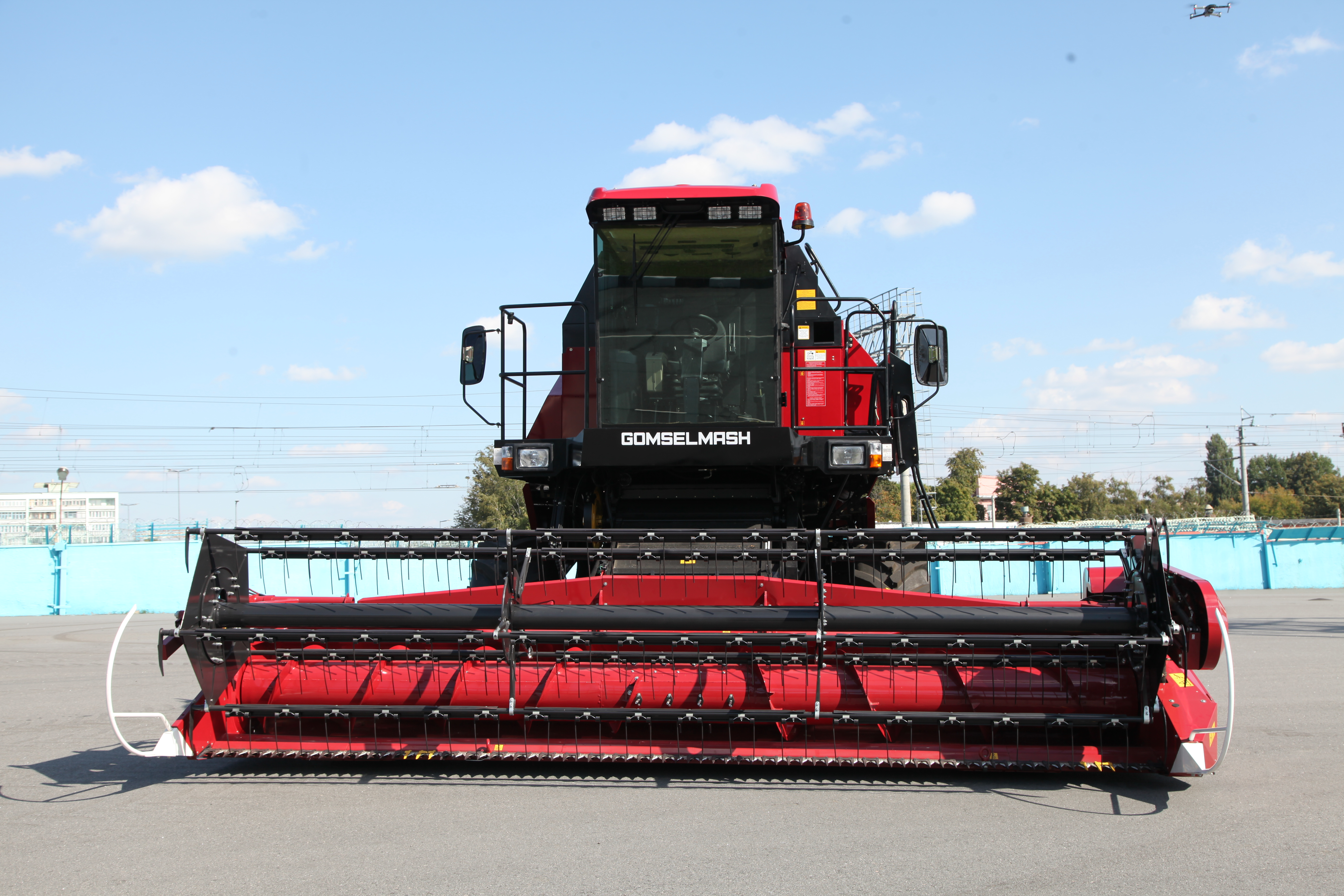

Grain harvesting combine GOMSELMASH GS5

Grain harvesting combine GOMSELMASH GS5 is a combination of technical simplicity and ease of operation. Small and medium-sized agricultural organizations that need compact and maneuverable agricultural equipment choose this "economy class" model.

GOMSELMASH GS5

Stable work on fields with complex relief and configuration, optimal cost of owning a combine, ease of operation and maintenance – this is what our customers value this combine for.

The lowest level of harvesting costs with a grain yield of up to 30 c/ha is the “visiting card” of the GS5 combine harvester.

Everything you really need

Cabin

Operating the GS5 combine harvester is intuitive thanks to logically grouped working parts. Angle of the steering column and the steering wheel are adjustable. The simple operation of the combine provides the required level of productivity.

To increase your comfort in work and reduce fatigue, air conditioning and a heater are installed in the cab.

Simple – effective

Widest feeder

The GS5 combine is equipped with a feeder housing using three high quality structural chains. The feeder housing in combination with a single-drum threshing and separating system creates minimal air flows, which minimizes dust formation in the working area of the header. This technology makes it possible without additional dust removal devices, which increases reliability without additional financial costs.

Feeder housing conveyor

Harvesting difficult crops will not be a problem, because the electric reverse function allows you to harvest in a shorter time, saving time on cleaning the feeder housing and adapter.

Classic threshing and separation system

The extremely simple classic DRUM-FLOW threshing and separation system with one threshing drum, beater and straw walker makes GS5 the most practical choice for working at low to medium yield fields.

DRUM-FLOW

Such a scheme, apart from enviable technological reliability, provides versatility of application and simplicity of maintenance. The large size of the drum (diameter 800 mm) and deck allows you to significantly soften the threshing mode without reducing the degree of threshing. The concave clearance required for optimal threshing is controlled by an electric mechanism from the cab.

The DRUM-FLOW system fully demonstrates its performance when working on difficult crops, such as high-straw and wet grain.

If you are harvesting crops that are easily damaged, such as corn, sunflower and others, a reduction gear is optionally installed on the GS5 combine. In this way, gentle threshing is achieved with a minimum percentage of damaged grain.

GS5

After threshing, the straw passes in a uniform flow through the straw walker, which is open at the bottom, ensuring reliable separation of almost all residual grain. Thanks to the finger grating of the returns pan, the grain heap is pre-distributed into two layers, which are evenly flow to the cleaning sieves. This system makes it possible to process even large volumes of straw quickly and easily.

The presence in the combine of a relatively small number of parts allows to reduce the time of maintenance and increases its maintainability without reducing the quality of the process.

Cleaning system




Cleaning system

Optimum height difference, intensive counter movement of the straw walker keys guarantee you the most complete separation of the residual grain.




Three-stage cleaning system with a sieve area of about 4 m² is the optimal solution for a medium-class combine and maintaining its stable performance.

The cleaning system uses an 8-blade fan with curved profiled blades, which ensures uniform distribution of the air flow and high-quality blowing of the sieves. The fan speed is controlled from the cab and displayed on the computer screen. An additional sieve creates an additional cascade for blowing the grain heap, increasing the cleaning performance.

Gentle unloading in optimal time

Grain tank

Grain tank with a volume of 4500 litres is optimally suited for small and medium-sized farms with field yields 15-25 centner per hectare. A full grain tank is emptied in less than 2 minutes thanks to an unloading speed of 40 l/s. The unloading height of 3.8 m allows you to unload grain into any vehicles.

For chopping and spreading straw the GS5 combine is optionally equipped with the simple and reliable OPTI-CUT 24 straw chopper with a drum diameter of 503 mm and a rotation speed of 2136 rpm, which ensures high quality of the technical process without the use of additional functions.

Versatility when working on different crops

Adapters

Adapters

Adapters

Whatever crop you grow, you can harvest it with the GS5 combine using our adapters.
