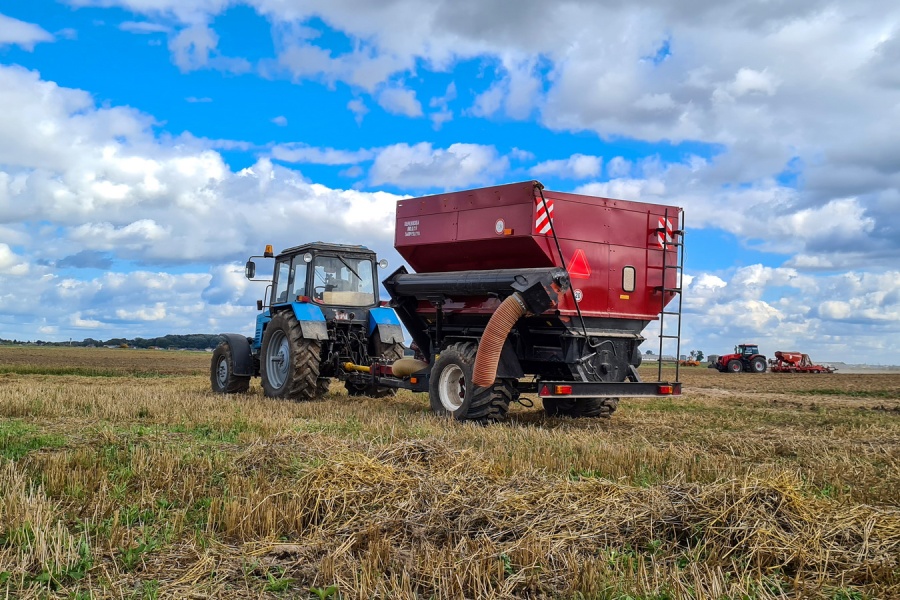

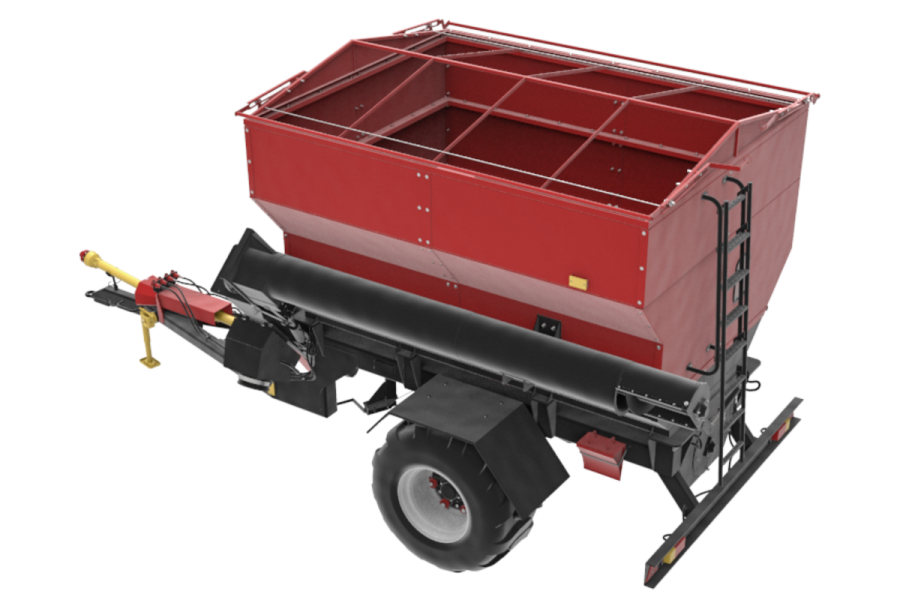

Grain cart BZ-1
Tank volume: 11,4 m3
Load capacity of the tank: 7 600 kg
Time of complete unloading: 7 min
Tractor drawbar category: 2
The BZ-1 grain cart is designed for loading seeding complexes and drills, as well as for transporting grain with subsequent unloading into storage and processing areas, or into a vehicle trailer for further transportation.
The cart is aggregated with class 2 drawbar category tractors. A hydraulically adjustable unloading auger ensures rapid feeding. Unloading time of a full tank is less than 7 minutes, significantly reducing downtime in the field.
Maneuverability and optimal dimensions provide freedom of movement across fields and public roads without restrictions. 24.0/50-22.5 tires reduce pressure on the soil, maintaining crop fertility. The canvas cover protects against rainfall and losses during transportation.
A grain cart based logistics system eliminates equipment downtime and significantly speeds up the harvesting process. The grain cart receives grain directly from the combine, then transports it to the edge of the field and transfers it to a grain truck.
Unloading grain from a combine does not require stopping the harvesting process, which ensures continuity and saves time during the harvesting season. During harvest, the grain cart becomes a key element: it acts as a buffer zone between combines and vehicles, accumulating harvested grain and then sending it to the grain truck for transportation.
Hydraulically controlled auger
Ensures smooth material feed, minimizes pulsation and ensures uniform unloading – less stress on the grain and more consistent processing parameters.
Grain quality
Smooth material feed reduces the risk of mechanical damage of the grain, maintaining its quality at the output.
Reduced combine downtime
Continuous grain unloading reduces downtime by 20-30%, allowing the machine to operate more efficiently without stopping.
Faster harvesting
Acceleration of harvesting by 20-30% due to faster movement of grain from the field to the storage or loading area.
Soil protection
Significant reduction in soil compaction thanks to large tires and optimal weight distribution.
For more detailed information on prices, terms of purchase and delivery, please contact dealer in your region.
| Model | BZ-1 | |
| Tank volume, m3 | 11,4 | |
| Load capacity of one tank, kg | 7 600 | |
| Time of complete unloading, min | 7 | |
| Tractor drawbar category | 2 | |
| Loading height into the cart, mm | 3 200 | |
| Maximum output of the unloading auger, kg/s | 19,5 | |
| Running gear | ||
| Road speed, km/h | 20 | |
| Road clearance, mm | 200 | |
| Service brake | pneumatic | |
| Parking brake | mechanical | |
| Overall dimensions and weight in transport position | ||
| Length / width on tyres / height, mm | 6 600 / 2 700 / 3 100 | |
| Overall dimensions and weight in working position | ||
| Length / width on tyres / height, mm | 6 600 / 4 900 / 4 700 | |
| Weight, kg | 3 500 | |
