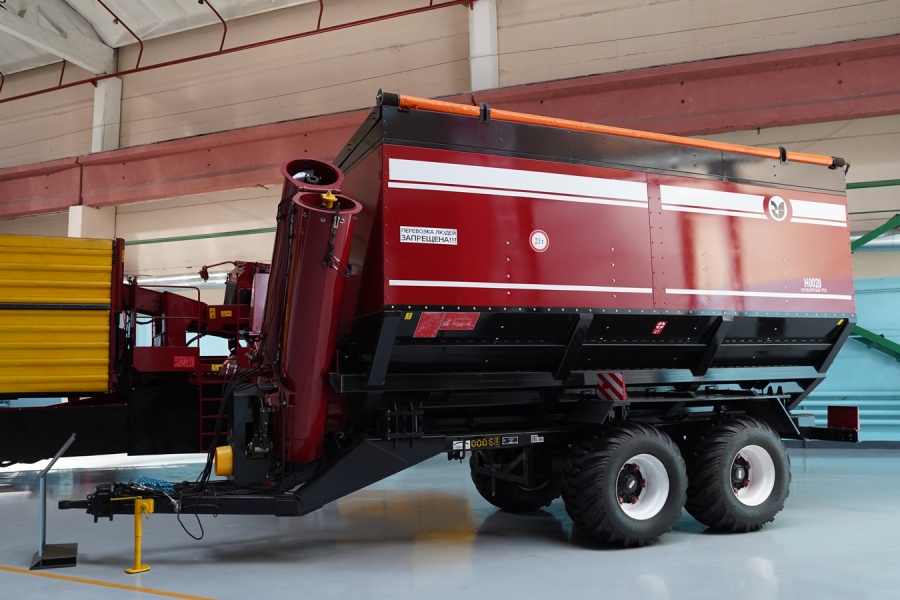

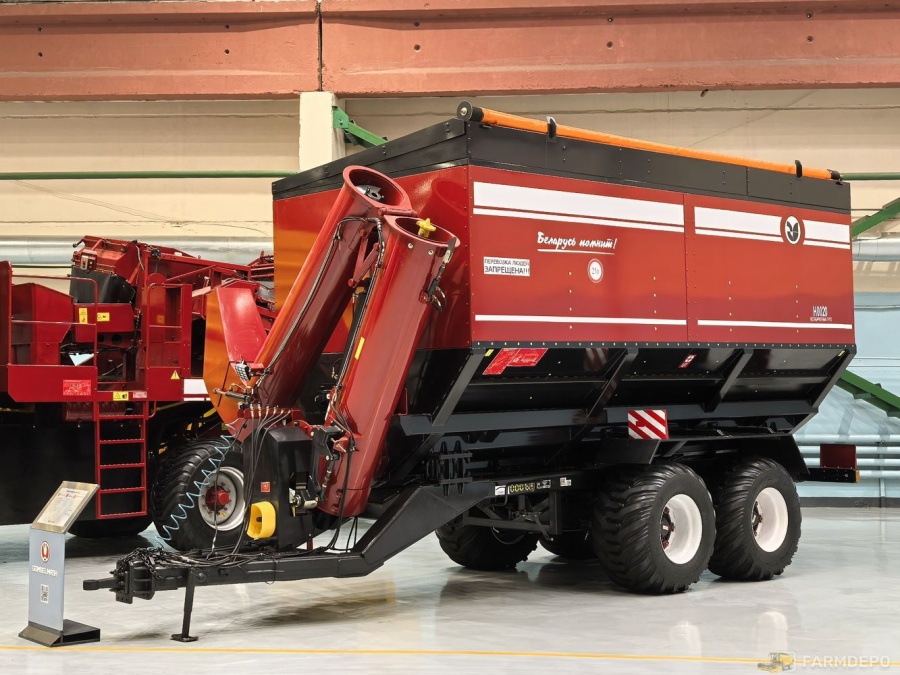

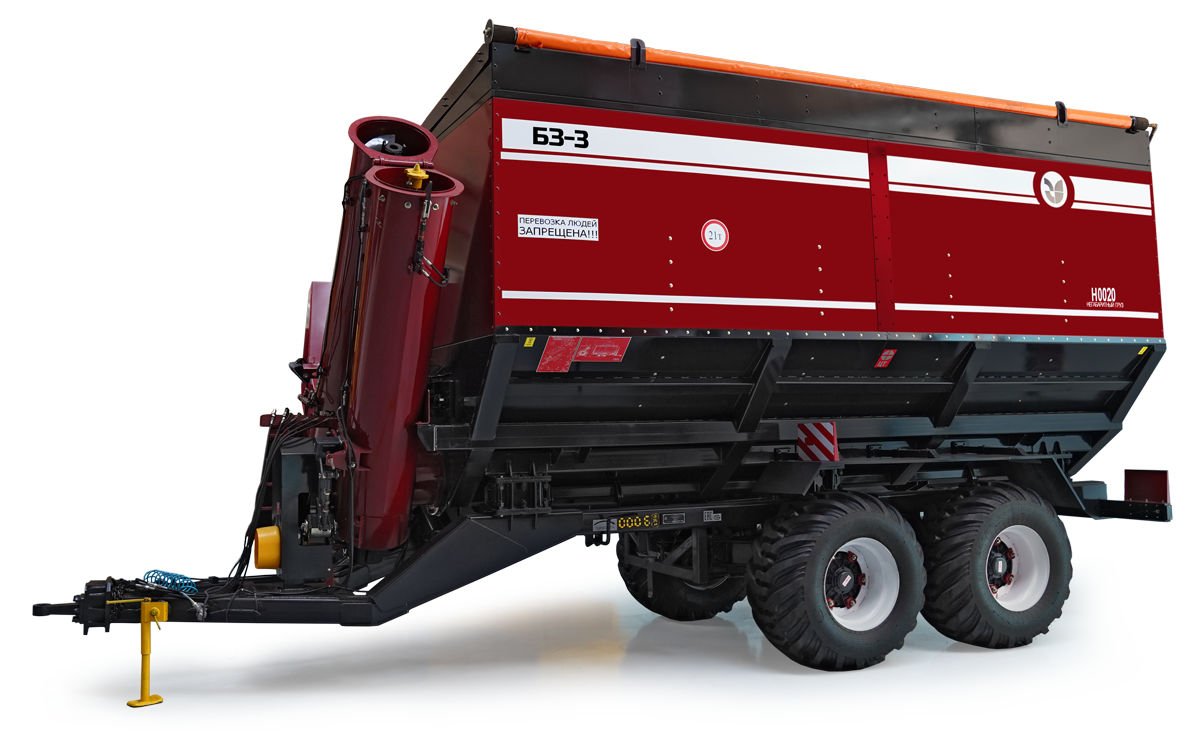

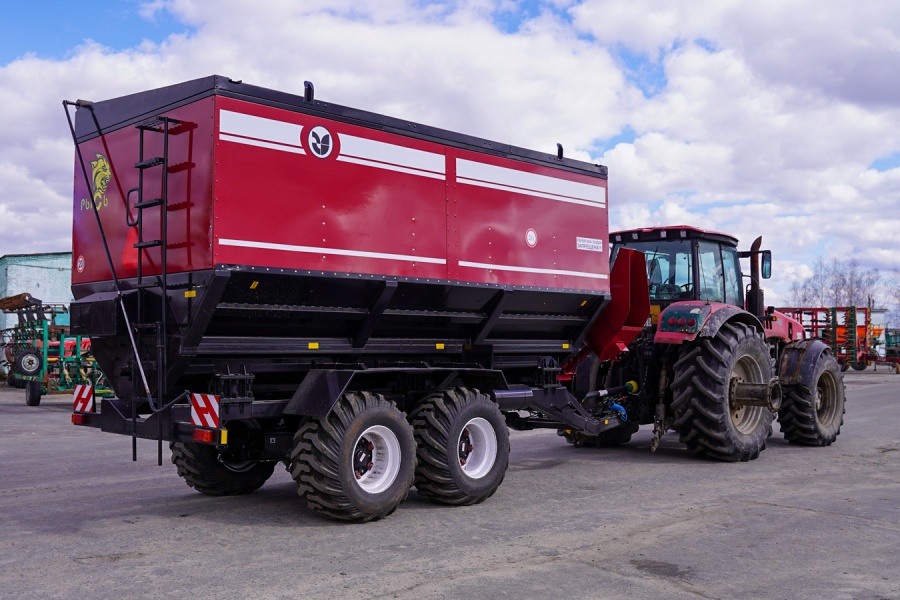

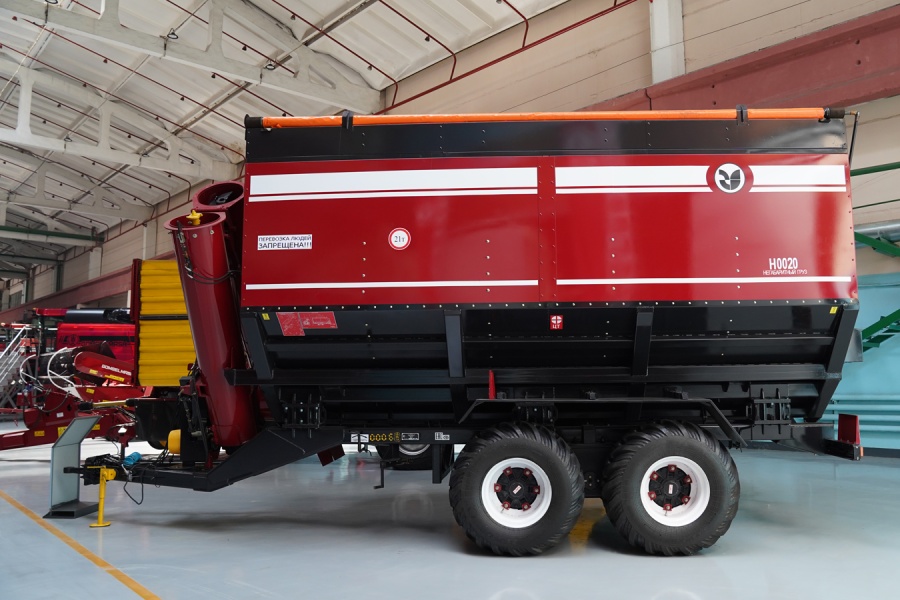

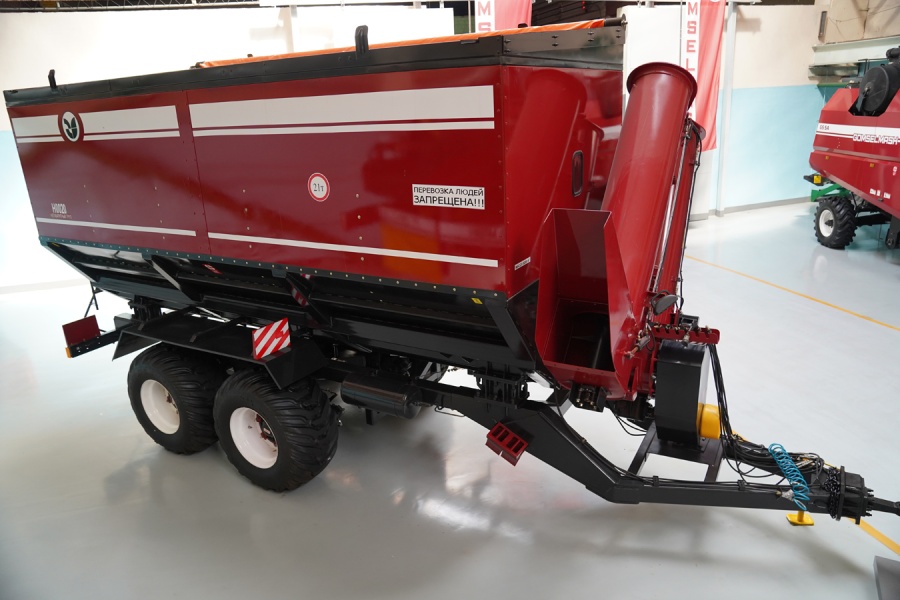

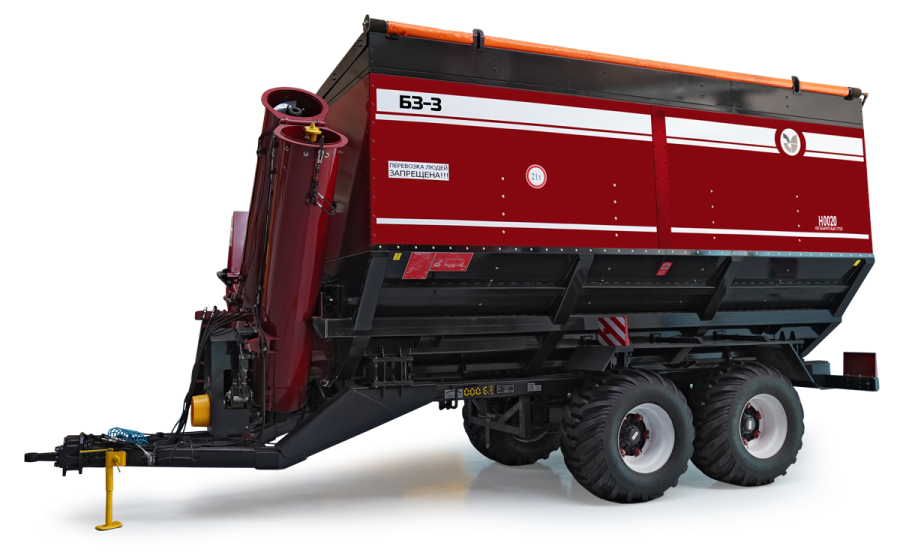

Grain cart BZ-3
Tank volume: 28-30 m3
Load capacity of the tank: 18 800 kg
Time of complete unloading: 6 min
Tractor drawbar category: 5 and above

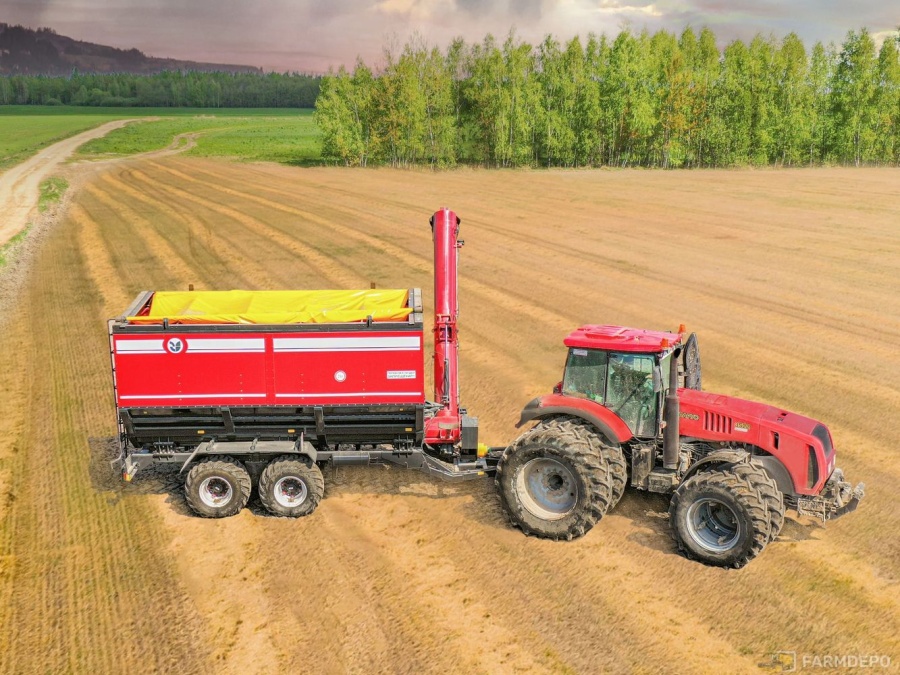

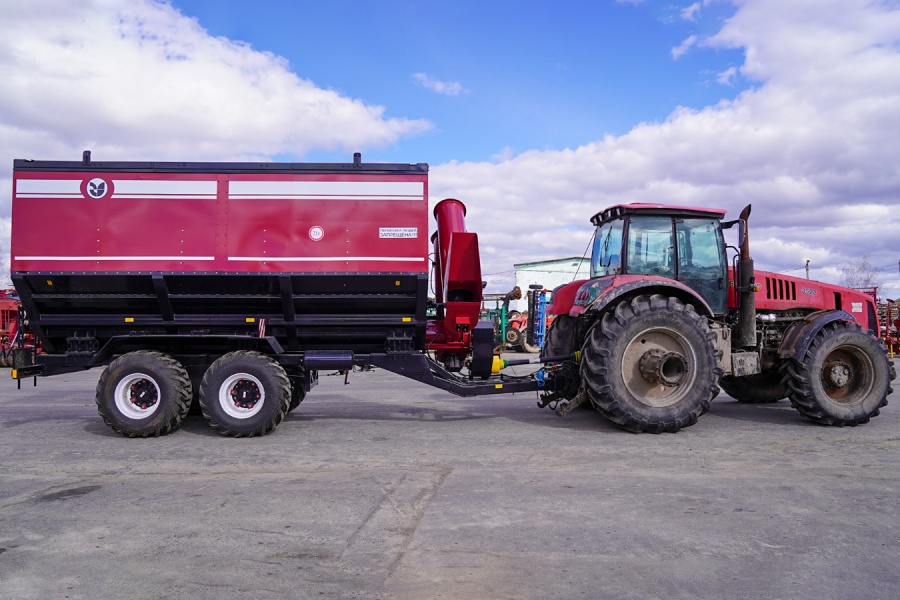

The BZ-3 grain cart is designed for transporting grain with its subsequent unloading into storage and processing areas, or into a vehicle trailer for further transportation, as well as for loading seeding complexes and drills.
We offer you an effective solution for harvesting grain and row crops – the BZ-3 grain cart. This machine will become the "heart" of your harvesting operation, ensuring smooth grain feeding, reliable loading and reduced equipment downtime. This allows your combines to operate without interruption, and your vehicles to quickly transport grain to the loading point.
POWERFUL LOAD CAPACITY AND LARGE VOLUME

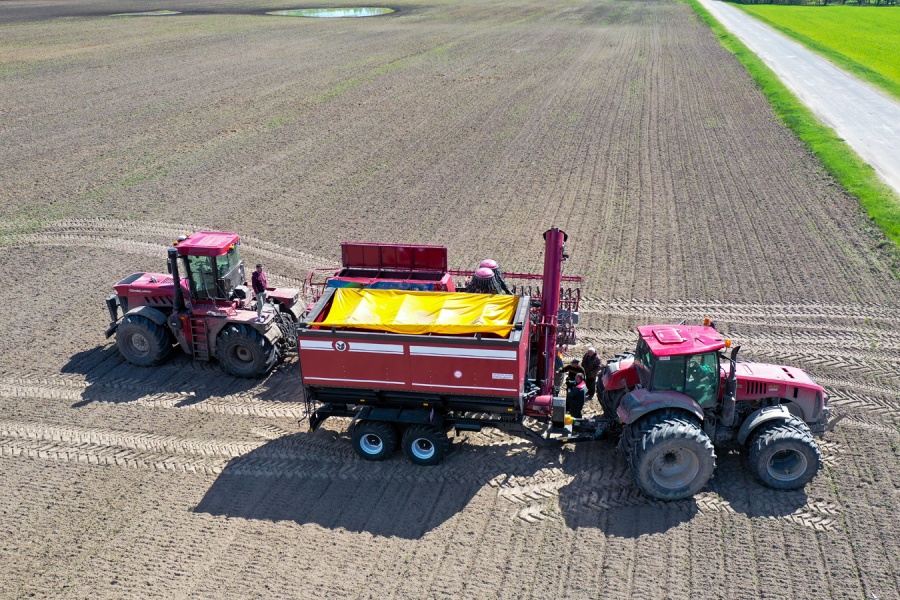

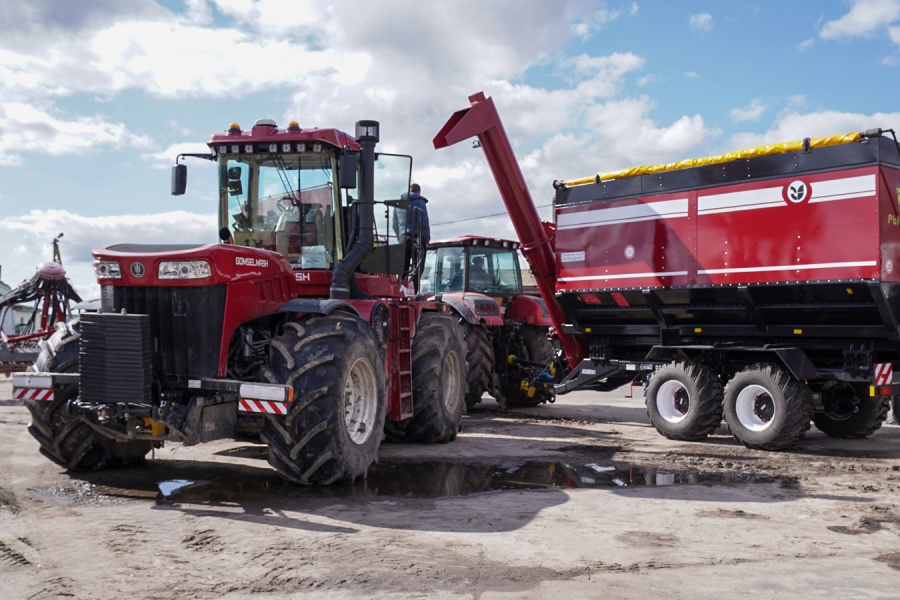

Transportation of grain from combine harvesters to vehicle or other unloading locations without delays, as well as the ability to load seed drills and fertilizer spreaders with seed or fertilizer.
EXCELLENT MANOEUVRABILITY AND STABILITY

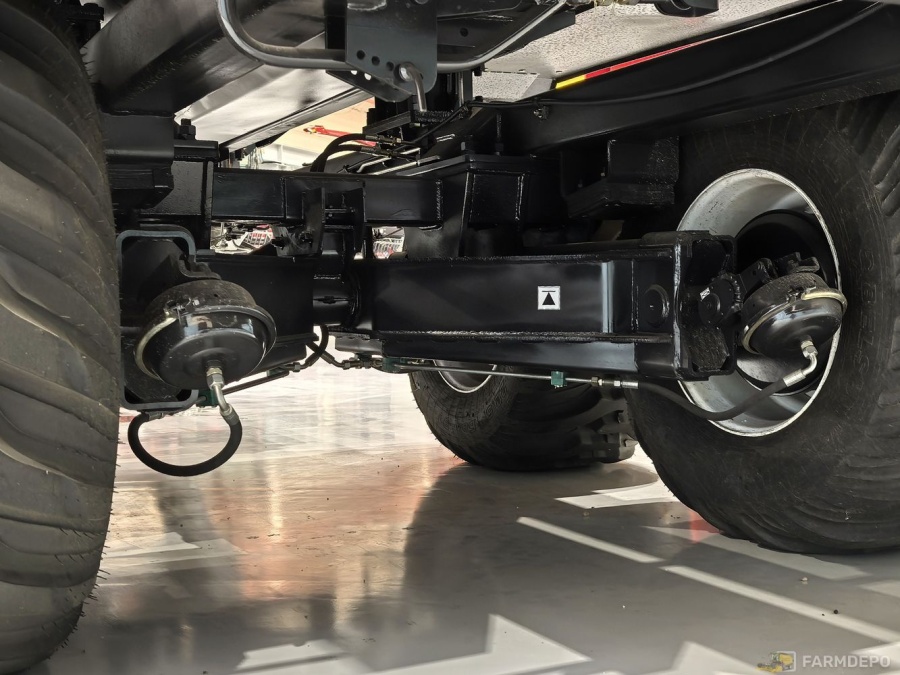

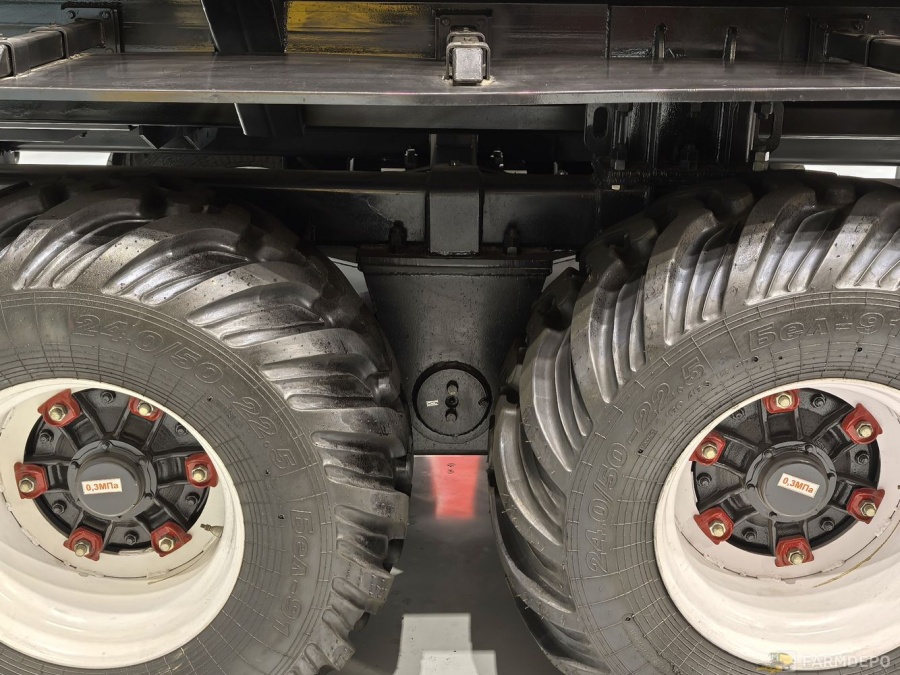

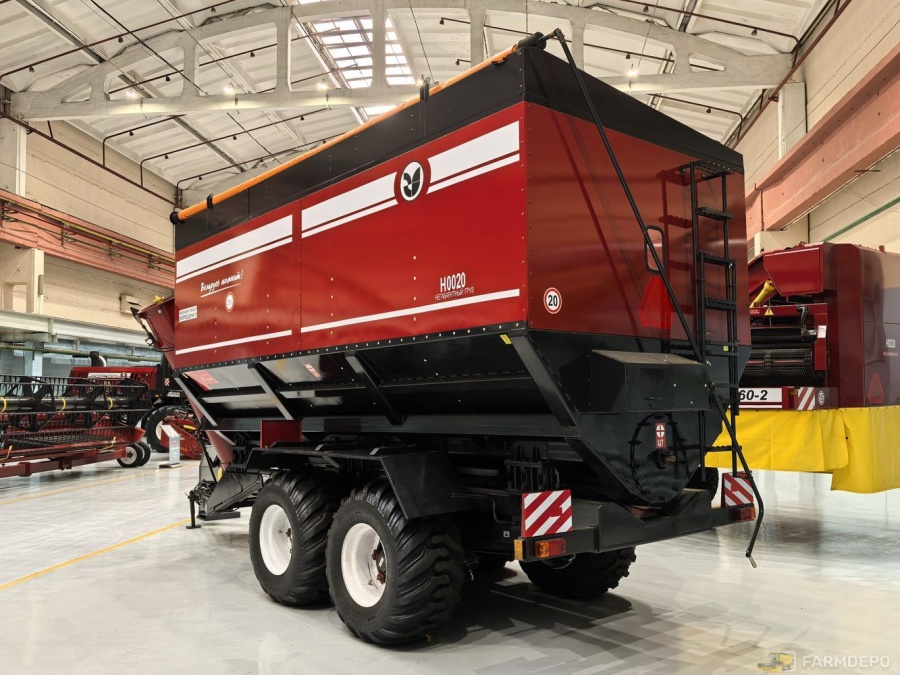

Two axles with balanced suspension ensure confident operation in fields with slopes of up to 8.5°.
EFFECTIVE UNLOADING

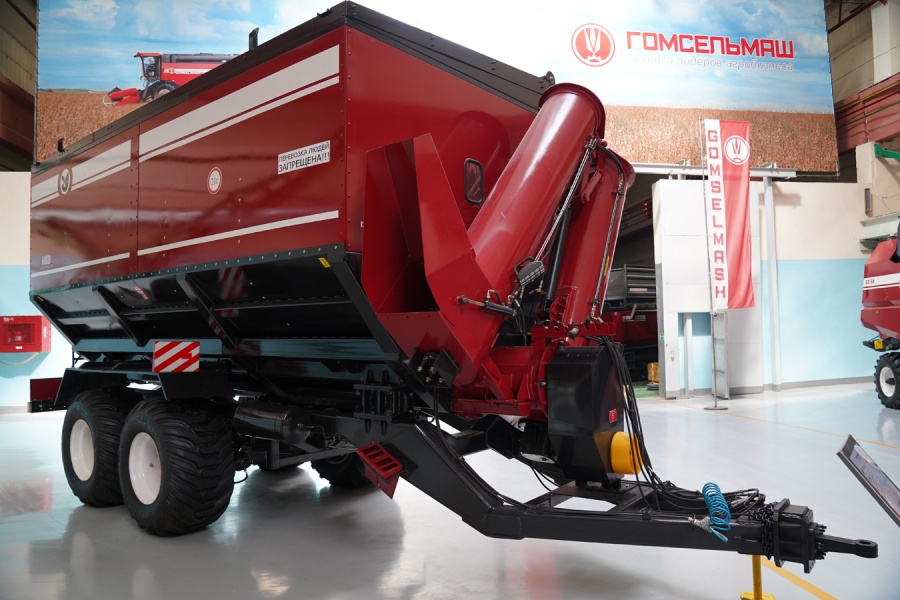

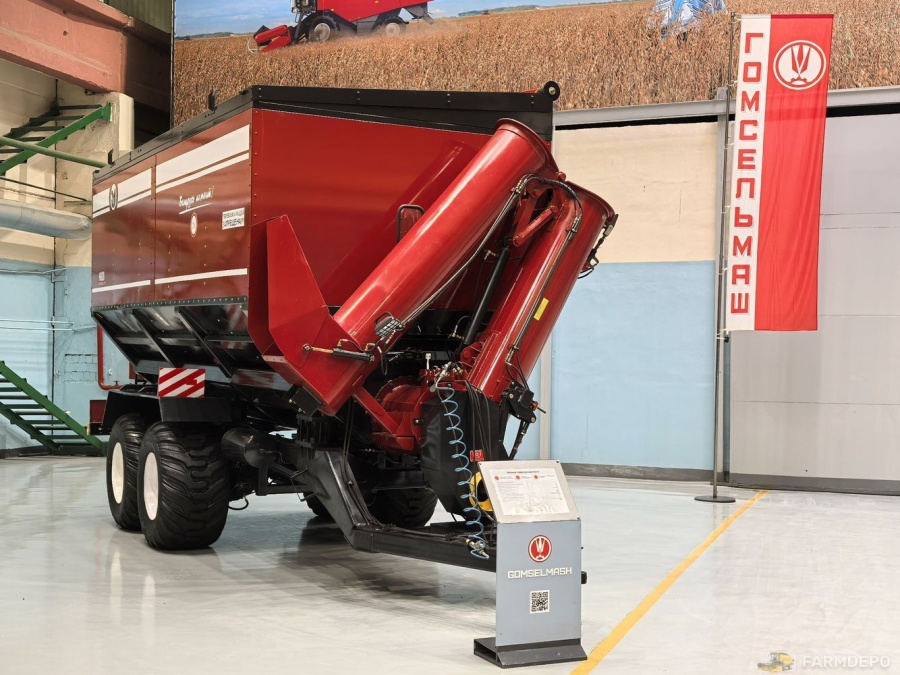

Unloading auger with a loading height of 4 300 mm, hydraulic guide plate for adjusting the discharge flow trajectory, hydraulic gate valves of the horizontal auger inside the tank for accurate feeding and minimal losses.
INNOVATIVE PREMIERE AND A PROVEN LINE
The BZ-3 model was first presented to the public at an exhibition in 2023 and became the second model in the line of grain carts after the BZ-1 (11 m³).
To optimally adjust the loading speed, the cart is equipped with a hydraulically controlled dosing unit. The canvas cover protects against rainfall and losses during transportation.
Hydraulically controlled auger
Ensures smooth material feed, minimizes pulsation and ensures uniform unloading.
Minimizes grain damage
Smooth material feed minimizes mechanical damage of the grain.
Reduced combine downtime
Reduction of 20-30% due to continuous grain unloading, the combine continues to operate without stopping.
Faster harvest
Reducing harvest time by 20-30%. Faster grain movement from the field speeds up completion.
Soil protection
Significant reduction of the load on the soil and elimination of over-compaction.
Fewer vehicles needed
One grain cart can service up to three combines, reducing the vehicle fleet.
Flow control
Overload speed control reduces flow pulsation, lowering the risk of delamination and defects.
Optional weighing system
Can be equipped with a weighing system to record loading and unloading amounts.
For more detailed information on prices, terms of purchase and delivery, please contact dealer in your region.
| Model | BZ-3 | |
| Tank volume, m3 | 28-30 | |
| Load capacity of one tank, kg | 18 800 | |
| Time of complete unloading, min | 6 | |
| Tractor drawbar category | 5 and above | |
| Loading height into the cart, mm | 4 300 | |
| Maximum output of the unloading auger, kg/s | 120 | |
| Running gear | ||
| Road speed, km/h | 20 | |
| Road clearance, mm | 350 | |
| Service brake | pneumatic | |
| Parking brake | mechanical | |
| Overall dimensions and weight in working position | ||
| Length / width on tyres / height, mm | 8 800 / 4 600 / 5 500 | |
| Weight, kg | 9 100 | |
