GRAIN HARVESTING COMBINE GS3219

390h.p.
Engine power
Threshing system (double drums)
Separation system (2 rotary straw separators)
Air conditioner
Зерноуборочный комбайн GS3219

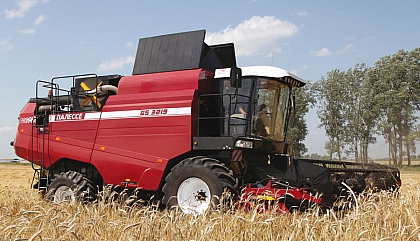

Grain harvesting combine GOMSELMASH GS3219 is a combination of high harvesting speed and versatility.

If you need to harvest grain in a short time due to special agroclimatic conditions, the power of machinery and the high quality of the obtained straw are important for you, then the combine harvester GS3219 will be the best choice for you.

Зерноуборочный комбайн GS3219

LUX CAB

Comfort and high productivity throughout the work shift are the main ideas embodied in the new generation LUX CAB, which is equipped with the GS3219 combine harvester.

Кабина

The air suspension seat, which is individually adjusted for you thanks to the available settings, a new steering column and steering wheel – all this is done to reduce operator's stress and fatigue, increase productivity, and, therefore, achieve maximum work results.

LUX CAB общий вид

Getting the job done just got easier. The information system of on-board computer HARVEST OFFICE with a color screen gives you the opportunity at the same time to control the combine harvester and monitor in real time the condition of its main functional units, control the working parts, engine, transmission, the progress of work and service operations, and also informs about the presence of warning and preventing emergency situations.

HARVEST OFFICE in combination with a monoblock combine control panel U-PAD and the multifunctional MULTI GRIP control joystick integrated into the armrest help to optimally adjust the work and easily manage the harvesting process under any conditions.

Also, to facilitate your work and increase its efficiency, the CROP PRESET system is provided in the combine. It allows you to automatically adjust the working parts of the combine (threshing drum speed, concave clearance, fan speed, gaps of the upper and lower sieves) when changing crops.

LUX CAB пульт

The powerful lighting system of working area LED VISION provides an excellent visibility when working at night. Also in the cabin LUX CAB, the location of the side mirrors has become more convenient.

Original constructional decisions and arrangement of the combine working systems provide maximum results by reasonable power consumption, which guarantees the optimal cost of harvested grain.

Fast and steady feeding system

Наклонная камера

The combine harvester GS3219 has the high-producing feeder housing with the use of four high-quality alloy steel chains. Thanks to this, you get a steady and smooth uninterrupted start of the grain mass and the ability to work with the minimum downtime even at high speeds.

Harvesting difficult crops will not be a problem, because the hydraulic reverse function allows you to harvest in a shorter time, saving time on cleaning the feeder housing and adapter. The simple and reliable spring tension mechanism ensures a constant tension, concentrating your attention on the more important stages of grain harvesting.

The DUST CONTROL dust removal system improves visibility of the header from the cab, allowing you to load more accurate the full length of the header and avoiding small obstacles, increasing the service life of the cutterbar and reducing downtime for its replacement.

Транспортеры наклонной камеры




Гидроразъём

The combine harvester GS3219 is designed for a variety of grain harvesting conditions, including showing excellent results at corn harvesting. This is achieved due to reinforced chains and slats of the feeder housing conveyor.




The multi-functional connector for adapters reduces aggregation time and makes this process less time-consuming.

Versatile threshing and efficient separation

Двухбарабанная схема обмолота

The basis of the GS3219 combine is the HYBRID-FLOW system. The proven double-drum threshing scheme with a uniform acceleration of the flow of the grain mass before it enters the threshing drum, which ensures a quick and gentle threshing of your grain. The increased volumes of the drums in combination with the increased area of double concave made it possible to make the threshing path longer, and the threshing itself more careful.

Молотильная установка

Drum speeds can be easily adapted to different crops and harvesting conditions. The rotational speed is infinitely adjustable in the range from 442 to 876 rpm.

In addition, the accelerator drum evenly distribute the mass, reducing the load on the threshing drum and the main concave. That’s why you get a stable and efficient threshing, providing the combine with an advantage when harvesting wet crops.

Два ротора GS2124

The high productivity of the combine is achieved due to two straw separator rotors with a diameter of 450 mm and a length of 4200 mm, which rotate in opposite directions, thereby creating a large centrifugal force, ensure efficient, fast and gentle allocation of residual grain so that you can get the maximum yield.

The separation system with two rotors allows the mass to be distributed more evenly, which has a positive effect on the residual threshing and cleaning.

Решетный стан

A cleaning sieves of an impressive area, three cleaning cascades, a powerful fan with a uniform distribution of air flow over the sieves – such a cleaning system satisfies the highest requirements for the purity of the obtained grain.

To be able to work on extremely harvesting conditions and hilly areas, the GS3219 uses an upper cleaning sieve with an extension piece adjustable in the slope angle.

Вентилятор очистки

To separate a large flow of grain heap, the model GS3219 provides a high-performance 5D AIR FAN cleaning system. With its help, cleaning the grain mass becomes a simple and efficient process.

Gentle unloading in optimal time

Бункер

The 9,500 liter grain tank is optimally suited for medium and large farms with field yields 50-60 centner per hectare.

Due to the optimal ratio of the unloading speed of 90 l/s and the volume of the grain tank, the emptying of a full tank occurs in less than 2 minutes without damaging the grain.

The height and length of the unloading auger make it easy to unload grain into vehicles, even on combines with 9 meters headers.

The PART-UNLOAD system, if necessary, allows you to immediately stop the unloading process, which minimizes grain losses in an unforeseen situation.

Efficient chopping and nothing extra

Соломоизмельчитель




Половоразбрасывател

The time-proved OPTI-CUT 80 straw chopper with an optimal number of 80 blades ensures consistently high quality chopping and spreading of the non-grain part of the crop without the use of additional functions.

The use of a balancing disc and a floating bearing support increases the reliability of the straw chopper, reduces axial stress and thus increases the life of the bearings, saving your time and money.

To maximize crop remains utilization, GS3219 is equipped with the double disc chaff spreader called UNI-SPREADER. Adjusting the speed of the double disc chaff spreader from 400 to 800 rpm helps to successfully spread the chaff of any cereal crop without affecting the air flow of the cleaning. And the optimal location of UNI-SPREADER above the field makes it possible to dispense with additional functions under the influence of the wind.

Systems for fast and effective work

Реверсивный вентилятор

Thanks to the innovative ARC-SYSTEM the radiator is cleaned by reverse airflow generated by a reversible fan that blows out all the dirt from an air inlet zone, which increases the performance of your combine and simplifies its maintenance.

Редуктор




Централизованная система смазки

When you need to harvest crops that are easily damaged, such as corn and sunflower, use the reduction gear, which is included in basic configuration on the GS3219 combine. This is how a gentle threshing is achieved with a minimum percentage of damaged grain.




To ensure non-stop operation during the hottest periods of harvesting, timely control and lubrication of the internal components of the combine is necessary. To minimize downtime, the GS3219 combine is equipped with the automatic central lubrication system, which improves the reliability of 26 major components and reduces maintenance time.

Versatility when working on different crops

ЖЗК-7

ЖЗС-9

ЖЗК-9

Whatever crop you grow, you can harvest it with the GS3219 combine using our adapters.

The GS3219 all-wheel drive combine is suitable for working in difficult conditions: with steady rains, poor flotation and low soil bearing capacity.

You can get more detailed information about prices, terms of purchase and deliveries of combines from a dealer in your region.
