MOUNTED ROTARY THREE-SECTION MOWER-CONDITIONER CH90

218
Required power, h.p.
8.7
Operating width, m
3
Number of sections, pcs
Typ: mounted type
Relief copying

The CH90 mounted rotary mower-conditioner is the ideal solution for efficient mowing of green seeded and natural grasses. This multifunctional mower not only performs high-quality mowing but also immediately flattens the mowed mass, laying it in three neat swaths. The CH90 can also be used for simple mowing of grasses without flattening providing convenient laying in swaths.

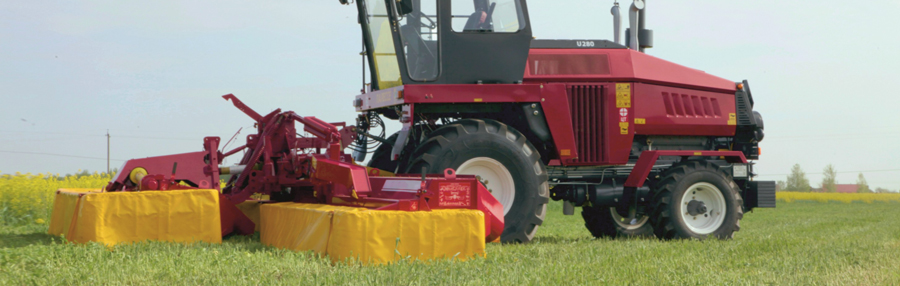

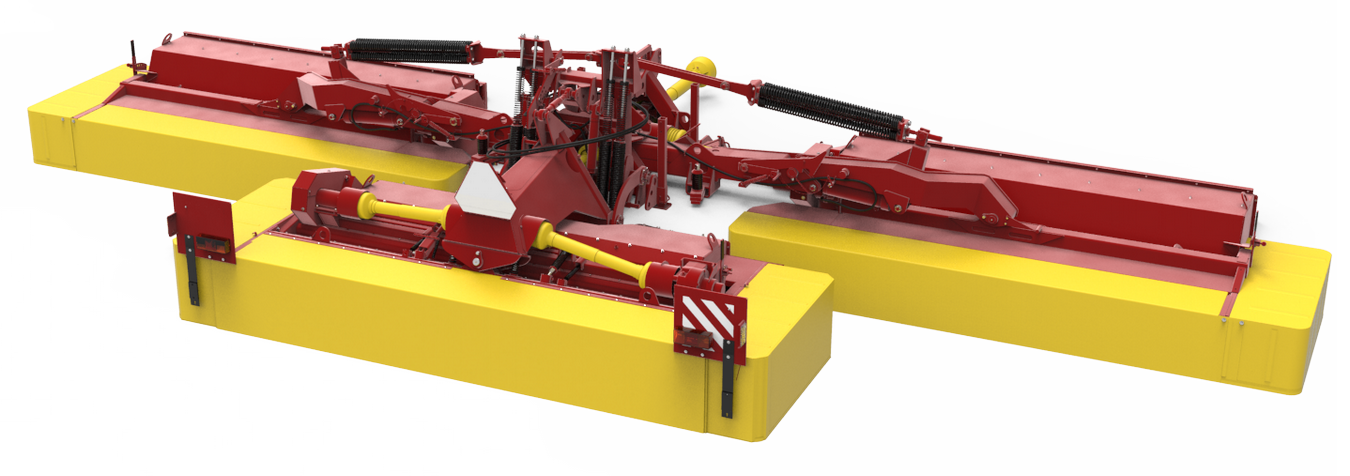

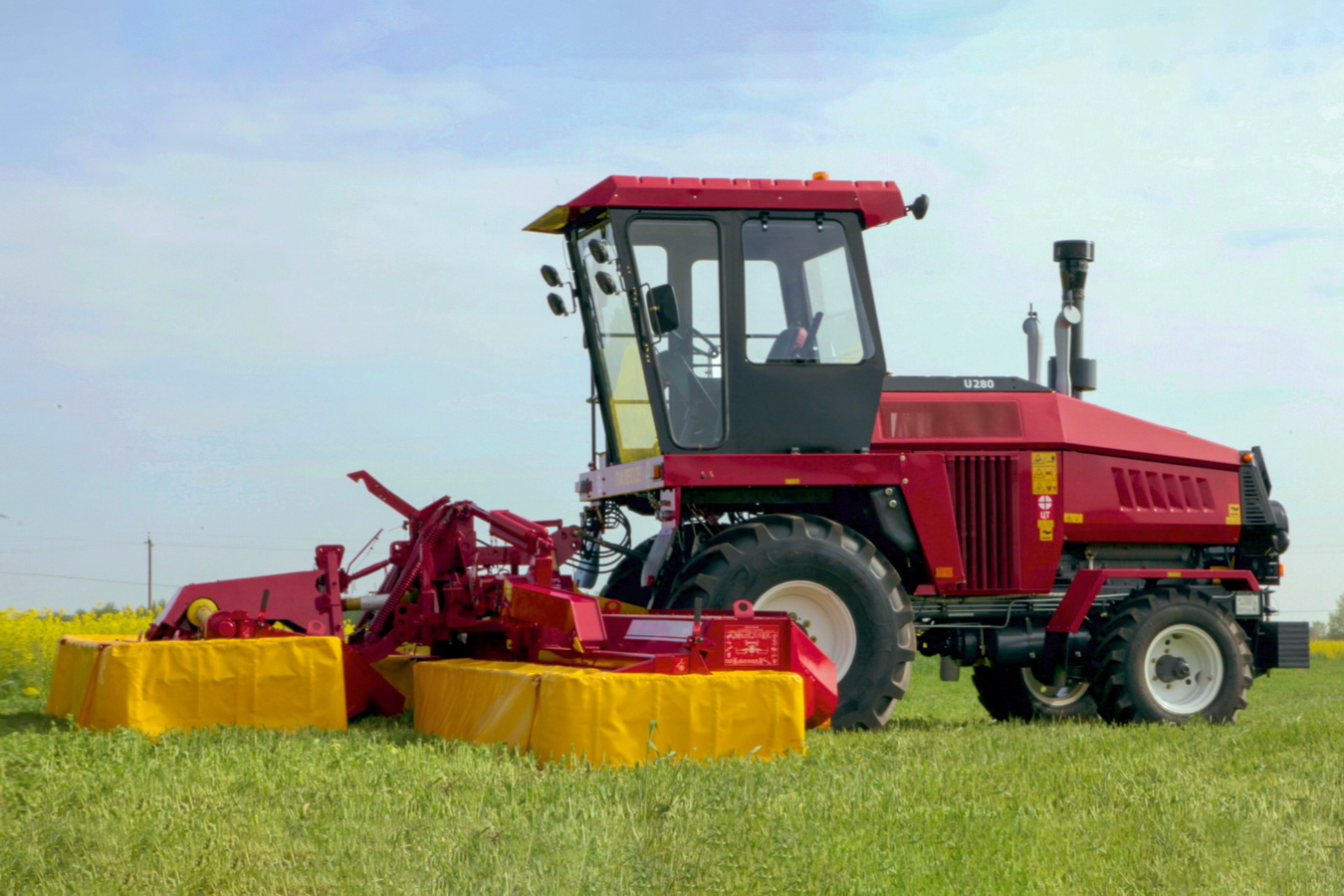

Mounted rotary three-section mower-conditioner CH90

The mower is aggregated with universal power vehicles 2U250A, 2U280A and their modifications, as well as tractors of drawbar category 5 with a maximum engine power of 350 h.p.: Belarus 2522, Belarus 2822, Belarus 3022, Belarus 3522 and their modifications.

The high productivity of the mower ensures that hay and haylage are harvested in a short period of time including cleaning and drying to the desired humidity. Conditioning and loose swath laying significantly speeds up the drying process saving time and reducing the number of technological operations.

The mower is equipped with a reliable KUHN cutting mechanism. Decks are installed on each section of the CH90 which regulate the degree of flattening of the plant mass which allows you to select the operating mode for different crops and harvesting conditions.

In the absence of the need for flattening as well as to avoid increased losses during flattening of legumes in the mower it is possible to dismantle the crushing device and install a set of replaceable swaths shields.

Efficient forage harvesting

Each of the three sections of the mower independently copies the relief. The rotary cutting unit ensures a low-quality cut and the 9-meter width ensures high productivity.

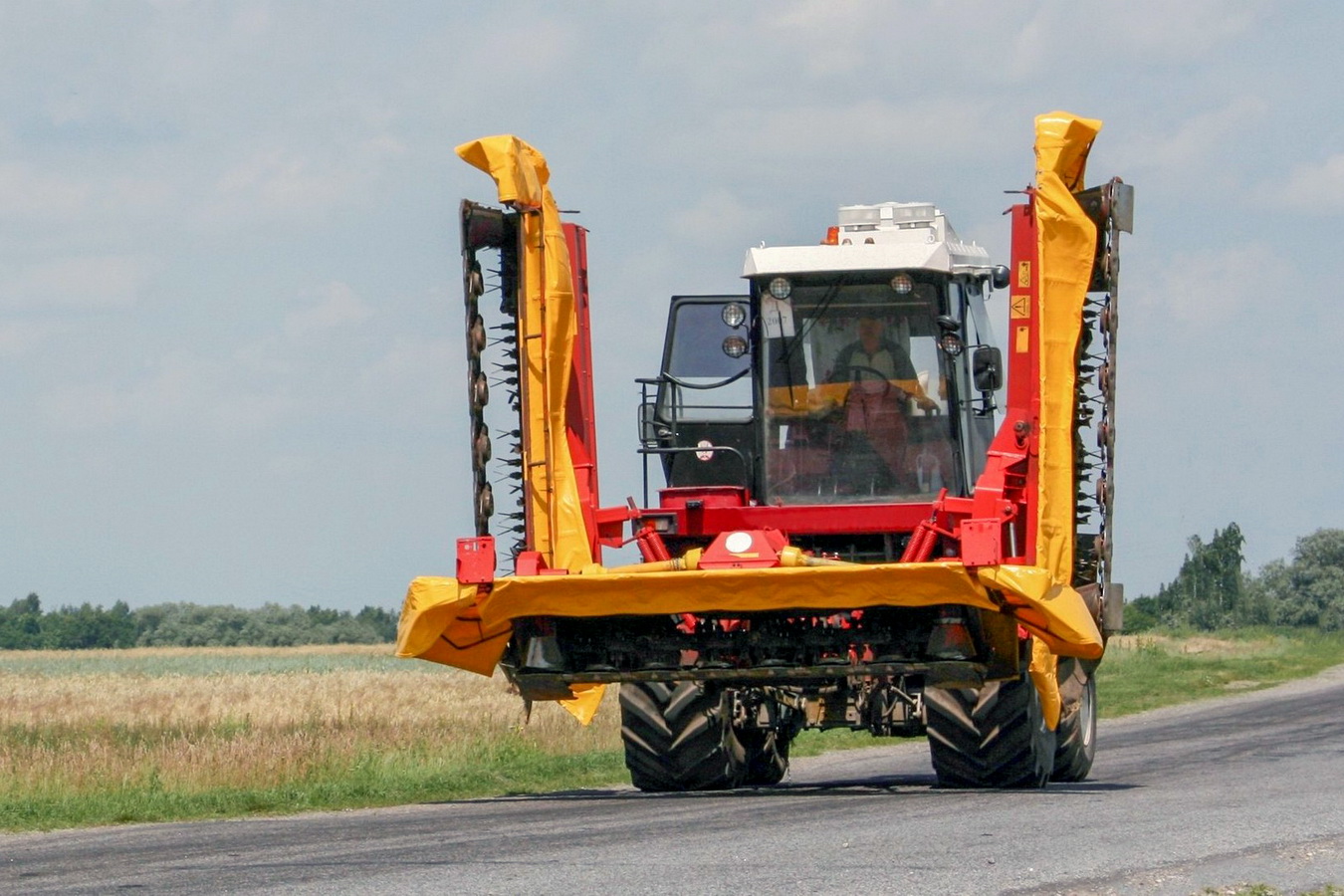

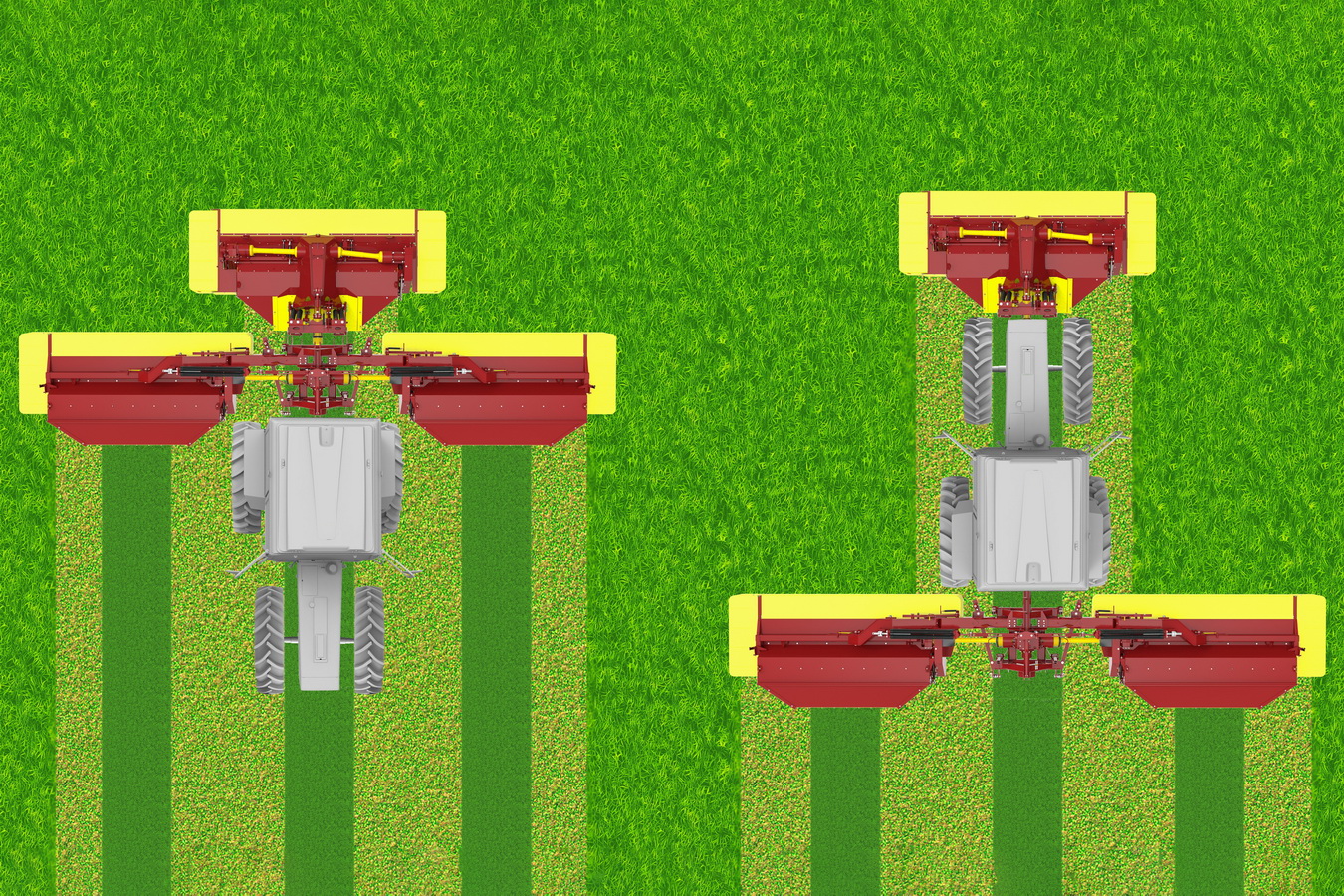

The mower in combination with a tractor can operate with both compact and separate attachments. With a separate attachment scheme the load on the tractor and the pressure on the soil are reduced since there is no need to use counterweights. The compact attachment scheme is used for aggregation with the MS280 power vehicle as well as with a tractor with a reversible control post which is available for all Belarus tractors of drawbar category 5.0. This scheme provides an excellent overview for the operator and ease of use.

Increase the productivity of your farm with the CH90 mounted mower!
